Limestone / Low-cost Single-stage Crushing
Limestone Heavy Hammer Single-stage Crushing Line
Simplified low-cost crushing line for limestone and medium-low hardness brittle materials, using heavy hammer crushing as the main machine.
Process scope
Solution framework only. Heavy hammer crushing is not suitable for all materials; hardness and abrasion must be confirmed before quotation.
Equipment matching is checked by feed material, mud and moisture, target capacity, product size, site layout and environmental requirements.
LimestoneHeavy hammer crusherLow-cost lineSingle-stage crushing
Typical process flow
01. Feeding
Feed suitable soft or medium-hard brittle raw material into the heavy hammer crusher.
ZSW / GZT feeder
02. Single-stage crushing
Crush raw material directly to ordinary aggregate size where the material condition allows.
PCZ / PCF heavy hammer crusher
03. Screening
Separate finished sizes and return oversize material if required.
Inclined vibrating screen
04. Return material control
Return oversize material to the heavy hammer crusher to reduce oversized finished material.
Return belt conveyor
05. Conveying
Transfer finished aggregate and connect the return loop.
WLB belt conveyor
06. Optional dust or washing support
Configured only when the site condition requires it.
Spray dust control or simple washing section

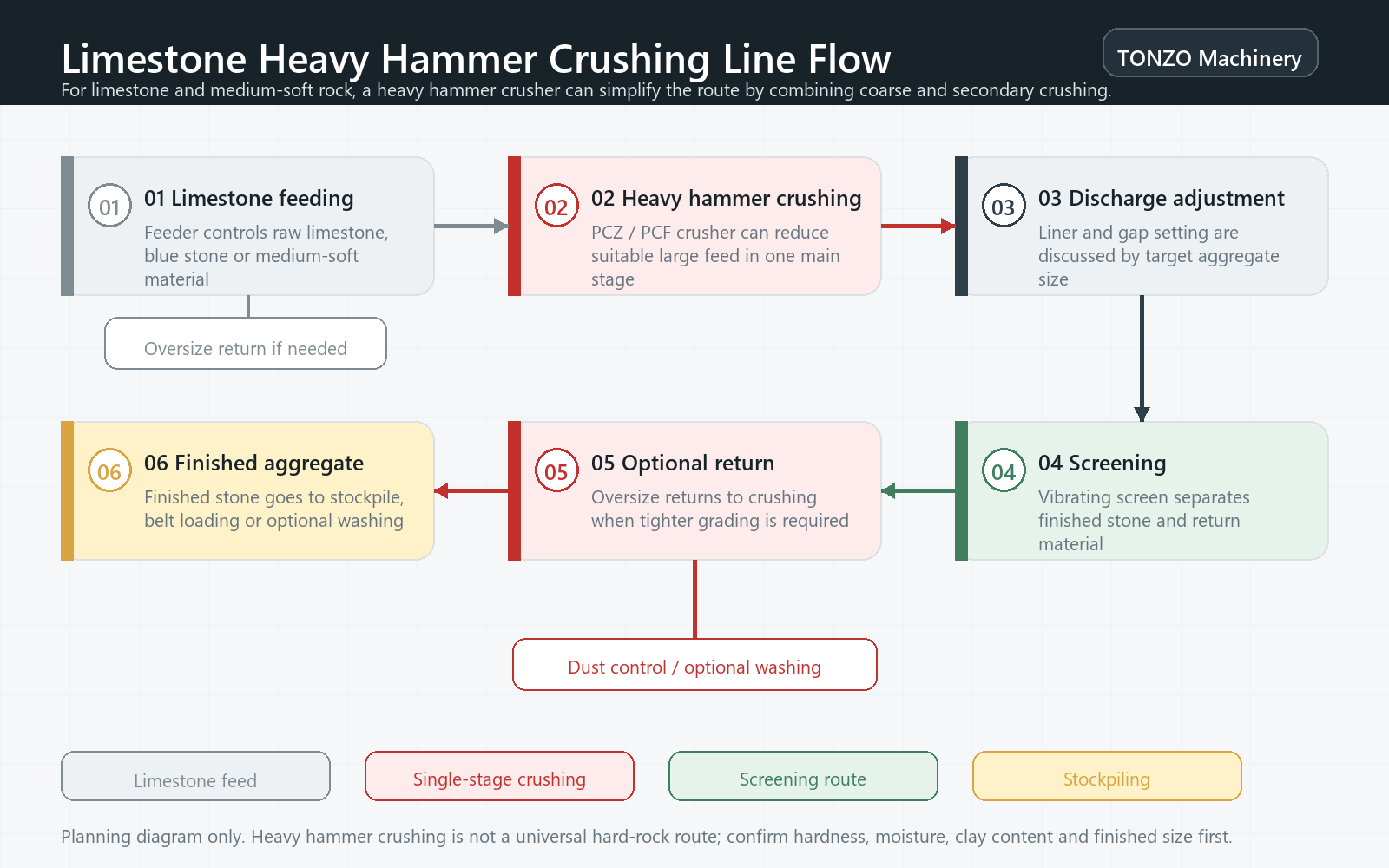

Material flow of limestone heavy hammer simplified line
Main material route
- Raw material -> feeder -> PCZ / PCF heavy hammer crusher -> vibrating screen -> finished stockpiling by belt conveyor
Return material route
- Oversize from screen -> return belt conveyor -> heavy hammer crusher again -> screening again
Optional environmental route
- Dust points -> spray / enclosure / dust collection; high-mud finished sand -> optional washing / dewatering
Equipment by process section
| Process role | Equipment reference | Selection note |
|---|---|---|
| Feeding | Feeding Equipment | Select vibrating or grizzly feeding according to feed size and whether pre-screening is needed. |
| Main crushing | PCZ / PCF Heavy Hammer Crusher | Main machine for suitable limestone and brittle low-abrasion material. |
| Screening | Vibrating Screen | Ordinary inclined screen is commonly used for aggregate grading. |
| Conveying | WLB Belt Conveyor | Connects feeding, crushing, screening and finished stockpile. |
Standard and optional equipment by section
| Process section | Standard equipment | Optional equipment |
|---|---|---|
| Feeding | ZSW / GZD vibrating feeder. | Use GZT grizzly feeder when feed blocks are larger or fine mud content is higher. |
| Main crushing | PCZ single-stage heavy hammer crusher. | Use PCF impact heavy hammer when particle shape is more important; evaluate 2PCZ only for very high capacity. |
| Screening | Inclined vibrating screen. | Use multi-deck screen for multiple finished sizes; avoid forcing wet muddy material through ordinary screens. |
| Return material | Oversize return belt conveyor. | Add transfer hopper or speed-adjustable conveyor by finished size requirement. |
| Conveying | WLB belt conveyor. | Arrange multiple stockpile belts or silos by finished product size. |
| Dust control / washing | Spray dust suppression or enclosed transfer points. | Add dust collector for strict dust control; add washing, dewatering and fine sand recovery for higher product cleanliness. |
Capacity planning ranges
The following packages are references from the heavy hammer model range. Material hardness, feed size and moisture can change capacity.
| Line size | Typical capacity target | Configuration idea |
|---|---|---|
| Small line | 50-110 t/h | PCZ1008 heavy hammer crusher + 1230 vibrating screen. |
| Medium line | 120-180 t/h | PCZ1310 heavy hammer crusher + 1548 vibrating screen. |
| Large line | 220-350 t/h | PCZ1512 heavy hammer crusher + 1860 vibrating screen. |
Reference packages by capacity range
The following configurations are for initial website communication. Formal proposals must confirm stone hardness, moisture and mud content, feed size, product use and whether return material is needed.
Low-cost small limestone line
Township aggregate plant, small cement raw-material project or backfill aggregate, with clean low-hardness limestone.
About 50-110 t/h
- Feeding: ZSW / GZD vibrating feeder
- Main machine: PCZ1008 heavy hammer crusher
- Screening: 1230 inclined vibrating screen
- Conveying: WLB belt conveyor
- Feature: fewer machines, simpler civil work and lower investment
Medium ordinary aggregate line
Small and medium stone plant producing ordinary construction aggregate and cement raw material.
About 120-180 t/h
- Feeding: ZSW490 or GZT grizzly feeder
- Main machine: PCZ1310 / PCF1210 heavy hammer crusher
- Screening: 1548 multi-deck vibrating screen
- Return material: screen oversize returns to heavy hammer crusher
- Optional: spray dust suppression or enclosed transfer
Large limestone single-stage line
Limestone quarry, cement raw-material crushing or high-capacity brittle low-abrasion material production.
About 220-350 t/h
- Feeding: GZT heavy-duty feeder
- Main machine: PCZ1512 / PCZ1615 heavy hammer crusher
- Screening: 1860 / 2060 vibrating screen
- Conveying: multiple WLB finished product belts
- Boundary: if granite or basalt is mixed into the feed, switch to a jaw crusher + cone crusher solution.
Suitable feed materials
- Limestone, bluestone, dolomite, shale, gypsum, coal gangue and other low-hardness brittle materials.
- Reference material boundary: compressive strength around <=200 MPa, subject to final material confirmation.
Mud-content assessment
- Low-mud dry material: Clean brittle material such as limestone and bluestone is suitable for the simplified heavy hammer line, reducing front-end equipment and civil work.
- Slight mud / moisture: Slightly muddy or moist material can be discussed, but blockage, chamber sticking and lower screening efficiency must be confirmed.
- High-clay wet material: Clay lumps, sticky clay and high-moisture feed can block the crushing chamber or screening system, so they are not recommended for this simplified line directly.
Target products and operating goals
- Use one heavy hammer crusher as the main crushing unit to simplify the process.
- Reduce investment in suitable limestone or soft-stone projects by omitting jaw crusher in some layouts.
- Produce ordinary aggregate, cement raw material or backfill aggregate where premium hard-rock particle shape is not the main target.
- Control 0-40 mm, 0-60 mm or multiple ordinary aggregate sizes through screening and limited return material.
When washing is required
- This line is a dry simplified crushing line by default and does not include a full washing and recovery system.
- If limestone has high mud content or the finished product cleanliness target is higher, sand washing and dewatering can be added downstream.
- If the target is cement raw material, backfill material or ordinary aggregate, the dry configuration is usually preferred.
- For strict site dust requirements, spray suppression, enclosed transfer and dust collection should be discussed first.
Optional wet-processing section
- When limestone is clean and the project only needs ordinary aggregate, washing is usually unnecessary.
- If cleaner 0-5 mm finished sand is required, XS / LSX washing and WLTS dewatering can be added downstream.
- High-mud or high-moisture feed should be evaluated with trommel screening, rotary scrubbing or washing instead of entering heavy hammer crushing directly.
Finished product size references
Ordinary aggregate
- 0-40 mm
- 0-60 mm
- Multi-size building aggregate according to screen configuration
Cement raw material
- General raw material size subject to downstream process requirement
Optional manufactured sand
- If 0-5 mm finished sand is required, fine crushing, screening or washing should be reviewed by sand yield and particle shape.
Main product outputs
- 0-40 mm or 0-60 mm ordinary mixed aggregate.
- 5-10 mm, 10-20 mm, 20-31.5 mm and other construction stone sizes according to screen configuration.
- Cement raw material or backfill material, with size confirmed by downstream use.
- 0-5 mm manufactured sand is only an optional direction, not the default focus of this line.
Key selection limits
- Best suited to low-hardness limestone and similar brittle material.
- Not suitable for granite, basalt or other high-abrasion hard rock.
- Not the preferred process for premium aggregate with strict particle-shape targets.
- Moist material can be discussed, but actual blockage risk depends on clay and feed condition.
- The simplified heavy hammer line is only economical when the material is suitable; low initial cost should not create high long-term wear cost.
- If the customer clearly requires high-standard aggregate shape, switch to jaw crusher + cone crusher + precision screening.
- When mud content is high or premium washed sand is required, washing, dewatering and fine sand recovery should be evaluated as downstream modules.
- PCZ, PCF and 2PCZ should be displayed separately from PC ordinary hammer crusher and SHKX reversible fine crusher; their parameters are not interchangeable.
Information needed before a proposal
- Raw material type and hardness
- Moisture and clay condition
- Target capacity
- Required finished size
- Budget direction and site condition
- Whether granite, basalt or other high-abrasion stone is mixed into the feed
- Whether the target is ordinary aggregate only or 0-5 mm manufactured sand as well
- Whether washing or dust-control environmental equipment is required
- Whether the customer prefers a single-stage simplified line or accepts jaw crusher + secondary crusher layout
Frequently asked project questions
When is a heavy hammer crushing line suitable?
It is suitable for limestone, bluestone and other medium-low hardness brittle materials when the buyer wants a simplified line. The core equipment is the PCZ / PCF heavy hammer crusher with screening and conveying.
Can heavy hammer crushing replace jaw crusher plus cone crusher?
Only for suitable material and product targets. For granite, basalt, diabase or other abrasive hard rock, use WLC jaw crusher plus hydraulic cone crusher instead of forcing a heavy hammer route.
What should be confirmed before quoting a heavy hammer line?
Confirm stone type, hardness, moisture, clay content, maximum feed size, required discharge size, target capacity and whether vibrating screening or washing is needed after crushing.
