Overview
Application & process role
Vibrating screen equipment is organized by function: inclined screen for ordinary aggregate grading, horizontal screen for high-precision fine classification, and dewatering screen for wet sand dewatering.
This structure helps buyers select by process role instead of being forced to understand internal series names.
For dedicated washing-line dewatering data, see WLTS High Frequency Dewatering Screen.
Configuration
Series and configuration groups

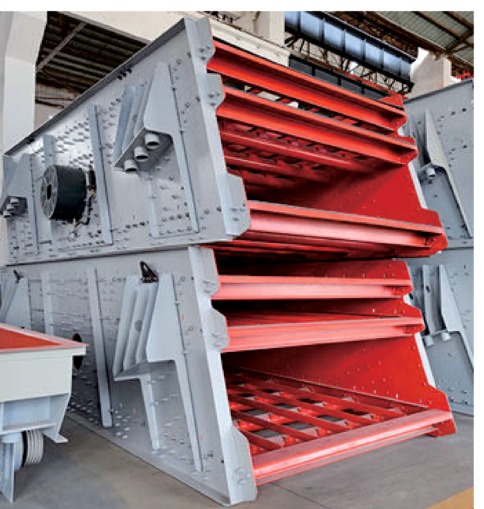

Inclined Vibrating Screen
15-degree inclined screen for ordinary aggregate grading, coarse particle separation and dry material classification after crushing.
Ask about this series

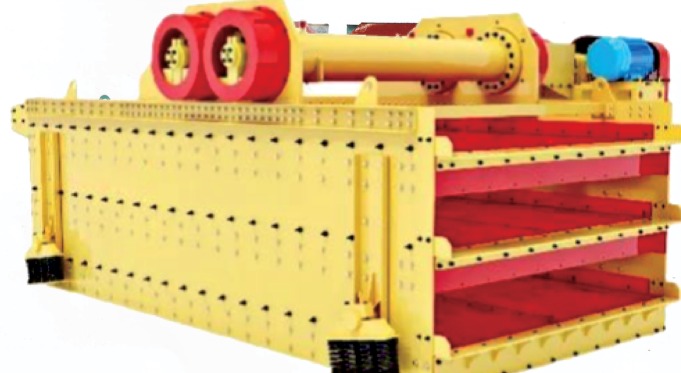

Horizontal Vibrating Screen
Horizontal equal-thickness screen for premium aggregate and manufactured sand fine classification.
Ask about this series
Dewatering Screen
High-frequency WLTS dewatering screen for water-washed sand, tailings slurry and wet material dewatering. Use the independent WLTS page for wet-process selection.
Ask about this series
Selection Note
Model range notes
Vibrating screen is kept as one public category entry. It is classified by screen structure and process role, not by SP or WLYKJ series names.
Display Logic
Website structure
Use Vibrating Screen as the main category, then separate inclined screen, horizontal screen and dewatering screen by process role and working angle.
Series Boundary
How buyers should choose this equipment type
Inclined Vibrating Screen
15-degree inclined layout for ordinary aggregate grading, coarse particle classification and low-cost high-capacity screening after crushing.
Horizontal Vibrating Screen
Horizontal equal-thickness screening layout for higher-precision fine grading in premium aggregate and manufactured sand lines.
Dewatering Screen
Small-angle, high-frequency and low-amplitude screen used for washed sand and tailings slurry dewatering. Detailed wet-process data is kept on the WLTS independent page.
Selection Boundary
Vibrating Screen Selection Boundary
Use vibrating screens for clean dry aggregate grading or dewatering, not for sticky clay-rich raw material.
Linear / vibrating screen
High-frequency screening equipment for dry aggregate classification, finished material grading and dewatering sections.
Choose when
- The material is dry, clean crushed stone or manufactured sand that needs multi-size grading.
- Crushed dry stone needs to be separated into several aggregate sizes.
- The SHY three-in-one washing machine uses a dewatering screen for wet sand dewatering.
- Material has little clay or floating mud and flows well.
- Multiple screen layers are required to control finished product size accurately.
Not suitable when
- Wet sticky clay material with high mud content can quickly paste and block the mesh.
- Large muddy raw stone directly entering the screen can damage the mesh and cause blockage.
Limits
Operating limits
- High-moisture sticky clay material can block the mesh.
- Not used for slurry dewatering; use WLTS dewatering screen for washed sand.
- Oversized muddy raw stone should be pretreated by grizzly feeder or trommel screen.
Model / Size Data
Vibrating screen model reference by screen type
Tables show common size ranges. Final configuration is checked by material hardness, mud and moisture, capacity, product size, upstream / downstream equipment and site layout.
The models are grouped by actual screen function: inclined screen, horizontal screen and dewatering screen. Final selection should be confirmed by feed grading, material moisture, required product sizes and screen media.
| Screen type | Feed size | Decks | Capacity | Motor power | Weight | Overall dimensions L x W x H |
| 1020 Inclined |
Inclined screen | <=100 mm | 1/2/3 decks | 30-80 t/h | 2 x 2.2 kW | 1.6 t | 3200 x 1100 x 1700 mm |
| 1230 Inclined |
Inclined screen | <=120 mm | 1/2/3 decks | 60-130 t/h | 2 x 3.0 kW | 2.8 t | 3600 x 1300 x 1850 mm |
| 1548 Inclined |
Inclined screen | <=150 mm | 2/3 decks | 120-220 t/h | 2 x 5.5 kW | 4.5 t | 4400 x 1600 x 2100 mm |
| 1860 Inclined |
Inclined screen | <=180 mm | 2/3 decks | 200-360 t/h | 2 x 7.5 kW | 7.2 t | 5200 x 1900 x 2350 mm |
| 2060 Inclined |
Inclined screen | <=200 mm | 2/3/4 decks | 300-500 t/h | 2 x 11 kW | 9.6 t | 5600 x 2100 x 2500 mm |
| 1020 Horizontal |
Horizontal screen | <=60 mm | 2/3 decks | 25-65 t/h | 2 x 3.0 kW | 2.1 t | 3300 x 1100 x 1620 mm |
| 1236 Horizontal |
Horizontal screen | <=80 mm | 2/3 decks | 55-110 t/h | 2 x 4.0 kW | 3.4 t | 4000 x 1300 x 1750 mm |
| 1548 Horizontal |
Horizontal screen | <=100 mm | 3/4 decks | 100-200 t/h | 2 x 7.5 kW | 5.8 t | 4900 x 1600 x 1980 mm |
| 1860 Horizontal |
Horizontal screen | <=120 mm | 3/4 decks | 180-320 t/h | 2 x 11 kW | 8.5 t | 5700 x 1900 x 2200 mm |
| 2070 Horizontal |
Horizontal screen | <=140 mm | 3/4 decks | 280-460 t/h | 2 x 15 kW | 11.3 t | 6400 x 2100 x 2400 mm |
| WLTS1024 |
Dewatering screen | <=10 mm | Single deck | 20-50 t/h | 2 x 2.2 = 4.4 kW | 1.3 t | 2800 x 1000 x 1450 mm |
| WLTS1230 |
Dewatering screen | <=10 mm | Single deck | 40-90 t/h | 2 x 3.0 = 6.0 kW | 2.2 t | 3400 x 1200 x 1600 mm |
| WLTS1536 |
Dewatering screen | <=10 mm | Single deck | 80-150 t/h | 2 x 5.5 = 11.0 kW | 3.7 t | 4100 x 1500 x 1780 mm |
| WLTS1842 |
Dewatering screen | <=10 mm | Single deck | 130-220 t/h | 2 x 7.5 = 15.0 kW | 5.6 t | 4700 x 1800 x 1950 mm |
| WLTS2048 |
Dewatering screen | <=10 mm | Single deck | 200-320 t/h | 2 x 11 = 22.0 kW | 7.8 t | 5300 x 2000 x 2100 mm |
Common Data
Vibrating screen classification notes
Use the following functional classification on the website instead of splitting products by SP or WLYKJ series names.
- Inclined screen: coarse aggregate grading, low-cost high-capacity screening and general aggregate separation.
- Horizontal screen: premium aggregate and manufactured sand fine grading with higher screening precision.
- WLTS dewatering screen: washing-line dewatering, desliming and fine sand recovery support. See the WLTS independent page for dedicated wet-process data.
- Screen media and screen layers should be selected by material size, moisture and target finished products.
Applications
Suitable materials and scenarios
Suitable materials
- Crushed stone after crushing, manufactured sand, ore aggregate, dry sand-stone mixtures and dry grading materials.
Suitable scenarios
- Multi-deck aggregate grading.
- Finished aggregate size separation.
- Mine ore screening.
- Fine selection after sand making.
- High-precision dry material grading.
Not suitable conditions
- High-moisture, high-mud material that easily pastes screen mesh.
- Slurry dewatering.
- Washed fine sand dewatering, where WLTS dewatering screen or relevant wet-process equipment is preferred.
Common matching lines
- Standard aggregate crushing line.
- Hard-rock manufactured sand line.
- Dry-process sand making line.
- Mine multi-stage screening line.
Line Position
Process role
Used for aggregate grading, manufactured sand fine classification and wet-process dewatering after washing or tailings recovery.
Material
Material check
Inclined screen is used for ordinary aggregate grading, horizontal screen for high-precision fine classification, and dewatering screen for wet sand dewatering and desliming. The screen type should be selected by material size, moisture, target product sizes and process position.
Inquiry
Information to send
- Screening duty: inclined grading, horizontal fine classification or wet-process dewatering
- Feed size and material moisture
- Required screen layers and finished product sizes
- Target hourly capacity
- Screen surface material: steel mesh, polyurethane screen mesh or polyurethane panel
- Connected upstream and downstream equipment
Selection
System parameters
- Screen type: inclined, horizontal or dewatering
- Feed particle size
- Required screen layers and product sizes
- Required capacity
- Material moisture
- Screen surface material requirement
Parts
Wear parts & spares for this equipment
Inclined screen parts
- Polyurethane screen mesh
- Steel wire screen panel
- Vibrating motor
- Damping spring
- Screen box liner
- Dust sealing cover
Horizontal screen parts
- High-wear polyurethane screen mesh
- Exciter assembly
- Damping spring
- Side liner
- Discharge buffer rubber strip
Dewatering screen parts
- Polyurethane dewatering screen mesh
- Waterproof vibrating motor
- Rubber damping spring
- Water-retaining skirt
- Flow-guide liner
Ask for matched parts
Matching
Related equipment
- Crusher
- Sand washer
- Belt conveyor
- Tailings recovery machine
- WLTS High Frequency Dewatering Screen
- Screen parts
Related Links
Related equipment
Selection Summary
Quick Equipment Selection Summary
- Large hard-rock raw stone first-stage crushing: choose a jaw crusher.
- Small soft-stone one-machine crushing: choose an ordinary hammer crusher.
- Medium-hard limestone or bluestone, simplified one-machine crushing: choose a heavy hammer crusher.
- Pebble, granite and hard-rock premium aggregate: choose a cone crusher after primary crushing.
- High-mud wet material and mud-stone separation before washing: choose a WLGSX trommel screen.
- Dry aggregate precision grading or finished sand dewatering: choose a vibrating screen.
- Clay-wrapped stone and deep desliming: choose an XSJ drum stone washer.
- Low-mud clean sand with simple washing needs: choose a wheel sand washer.
- Fine sand recovery, lower finished-sand moisture and integrated wet washing: choose the SHY three-in-one sand washing machine.
