Process-first selection
Machines are matched by process duty first, then checked against model size and supporting systems.
Hengyang TONZO Machinery Equipment Co., Ltd.
Aggregate equipment and washed sand plant solutions
TONZO supplies crushing, screening, feeding, washing, fine sand recovery, filter press, belt conveying equipment and wear parts. Washed sand projects usually need coordinated feed sizing, mud and moisture control, dewatering, fine sand recovery, water recycling and stockpiling. Other aggregate, recycling, dry-process and retrofit routes are available under Solutions.
Crushing, screening, washing, recovery, filter press and conveying supportSingle machines, spare parts and complete-line matchingSelection by material, capacity, washing demand and site condition
Crushing & Fine Crushing
Jaw crushers, cone crushers, hammer crushers, roller crushers and reversible fine crushers.
Screening & Grading
Inclined and horizontal vibrating screens, dewatering screens and drum sand screens.
Washing & Recovery
Spiral washers, wheel washers, tailings recovery machines and integrated washing systems.
Environmental & Conveying
Filter presses, dry tailings discharge workflows, zero-discharge process planning and belt conveyors.
Buyer Confidence
Practical equipment matching before quotation
Before quoting, TONZO checks the feed material, capacity target, product sizes, site layout and water-treatment requirements, then discusses the equipment combination that fits the duty.
Factory and service workflow
Engineering discussion, manufacturing coordination, installation guidance and commissioning support are connected in one workflow.
Clear inquiry checklist
Feed size, throughput, finished sizes, washing need and voltage are requested up front to reduce back-and-forth.

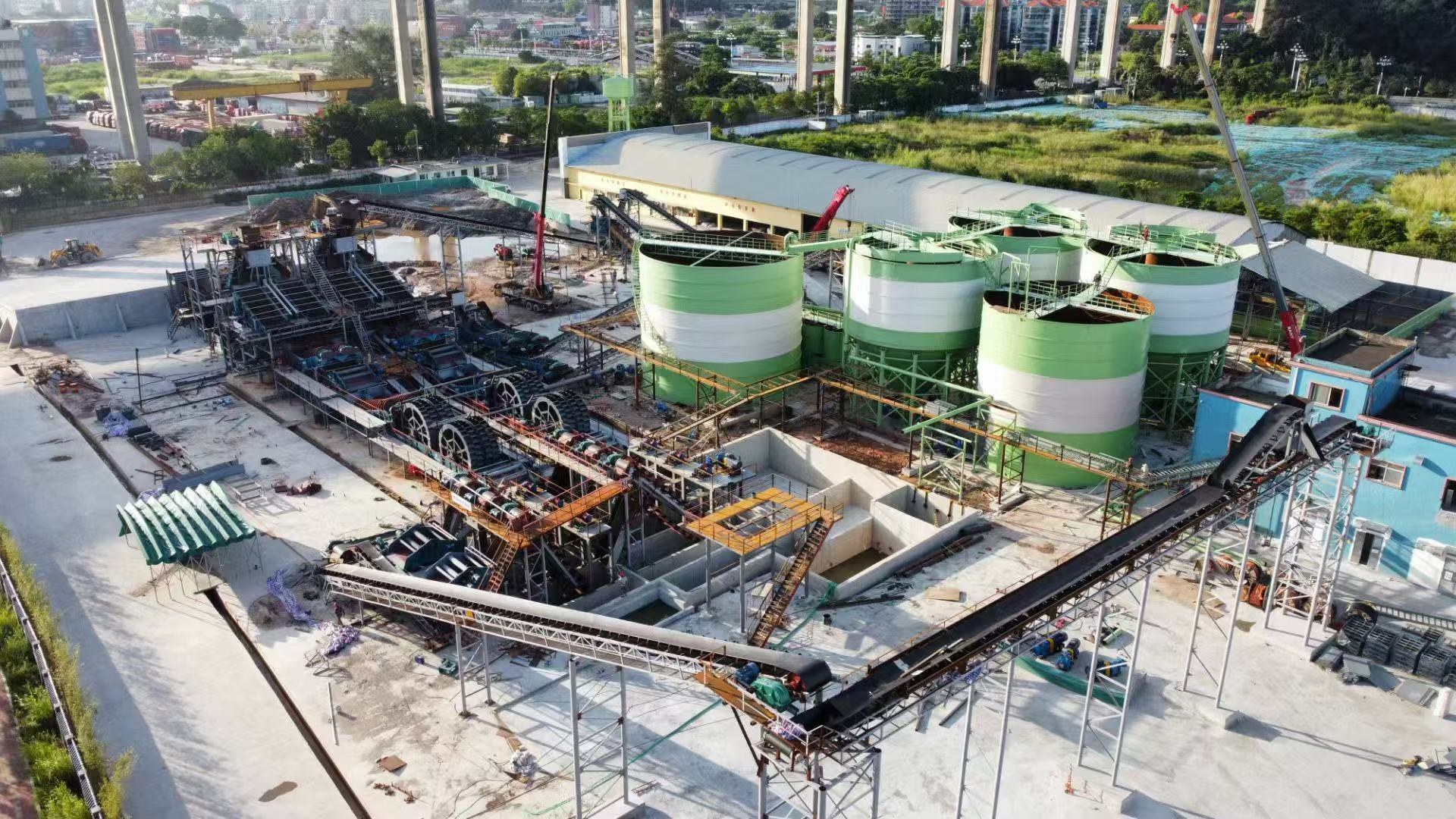

Featured Solution
Select the washing route by wet-process duty; choose other lines by material
Washed sand is suitable when the project needs mud removal, dewatering, fine sand recovery and water recycling. Hard-rock aggregate, dry sand making, C&D recycling, limestone hammer crushing and retrofit routes can be selected under Solutions by material and working condition.
Check the washing feed first, then match washing, dewatering, recovery and filter-press water return
For a washed-sand plant, front-end crushing, screening and transfer control the feed size before washing. The downstream focus is washing, dewatering, fine sand recovery, filter-press water return and finished sand stockpiling.

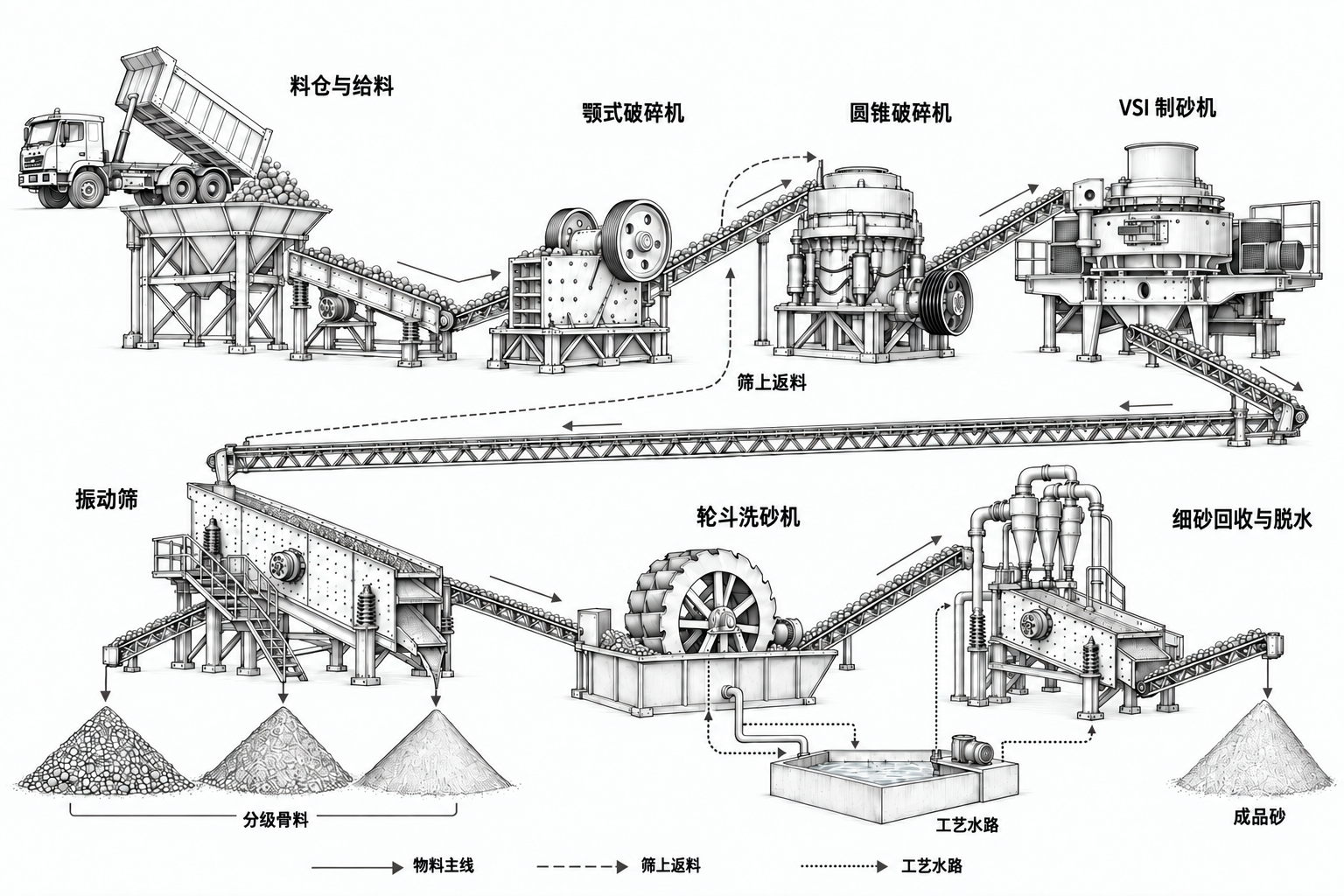

Feed sizingWashingDewateringFine recoveryWater returnStockpiling
Product Catalog
Choose equipment by production process
Enter equipment by crushing, screening, feeding, washing, recovery, filter pressing and conveying duties. For an inquiry, share the material, feed size, capacity target, finished sizes and site condition so matching can start from the real process.
Crushing & Fine Crushing
Jaw crushers, cone crushers, hammer crushers, roller crushers and reversible fine crushers.
Screening
Inclined and horizontal screens, dewatering screens and drum sand screens.
Feeding & Connection
Vibrating feeders, belt conveyors and process connection equipment for stable line operation.
Washing & Environmental
Sand washing, tailings recovery, dewatering, filter pressing and water-treatment workflows.
Crushing

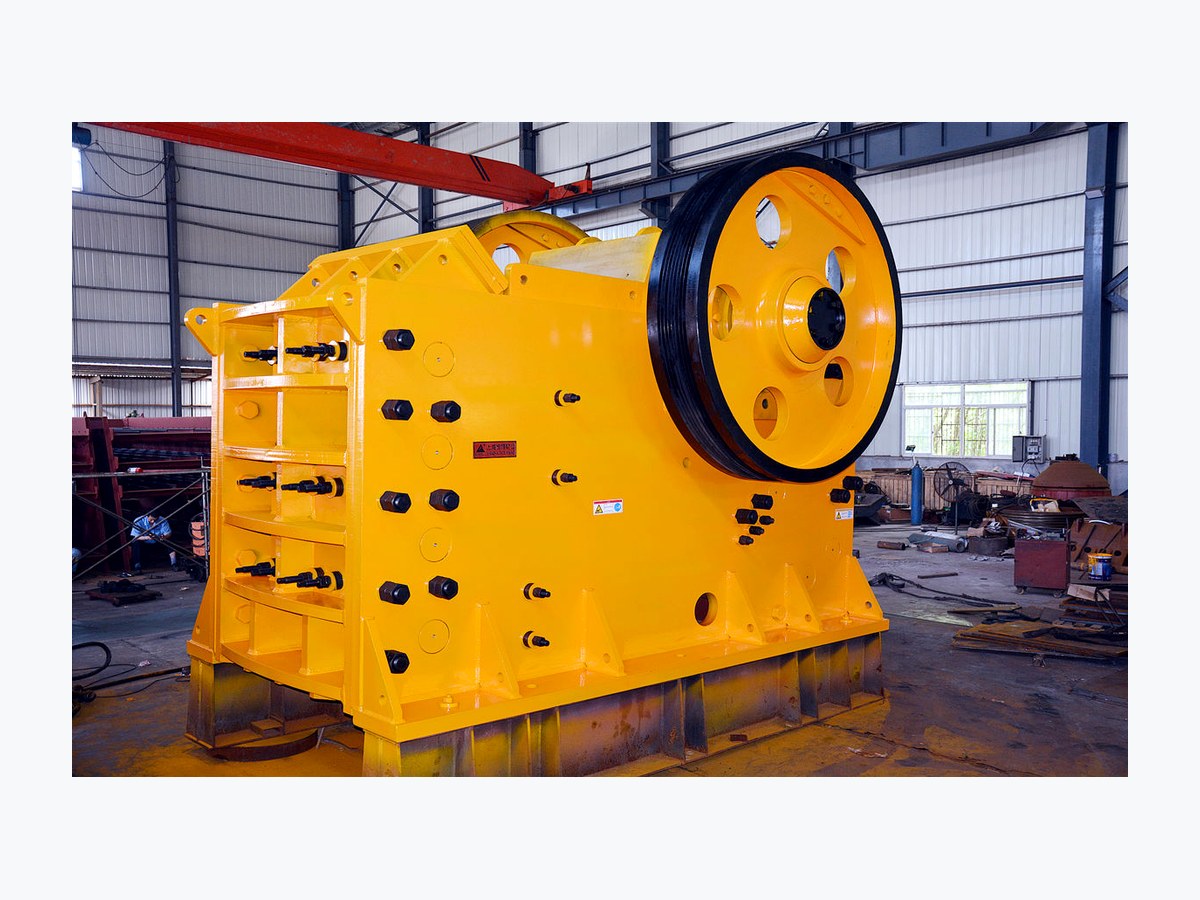

WLC Jaw Crusher for Aggregate Plant
Primary jaw crusher for aggregate and manufactured sand plants, preparing controlled feed before cone crushing, hammer crushing, screening, washing or belt conveying.
- 6 available models listed
- First crushing stage before cone crushing, hammer crushing, fine crushing, screening, washing or conveying.
Crushing

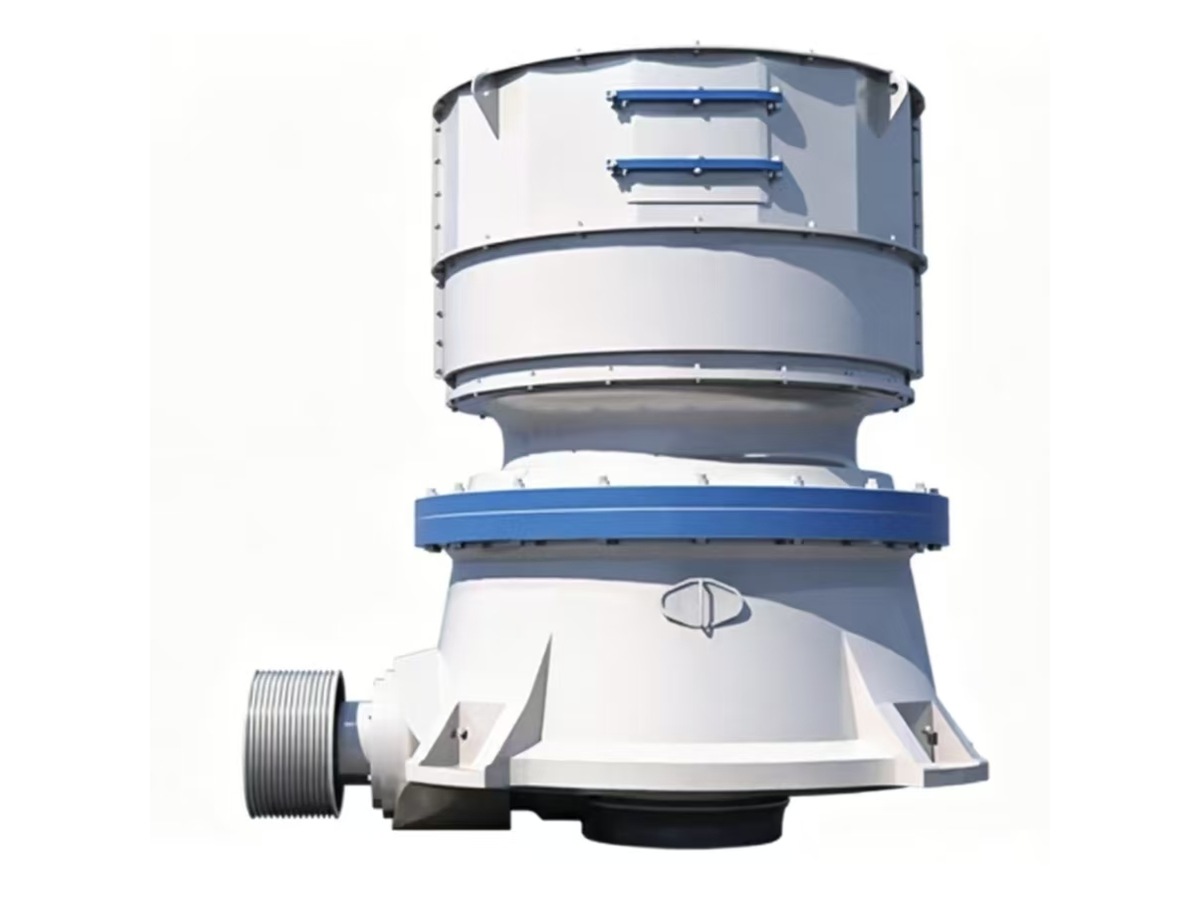

GPY Single-cylinder Hydraulic Cone Crusher
GPY single-cylinder hydraulic cone crusher for secondary medium and fine crushing after jaw crusher in aggregate, mining and recycling lines.
- 4 available models listed
- Used after WLC jaw crusher for secondary medium crushing or third-stage fine crushing before screening, washing or conveying sections.
Crushing

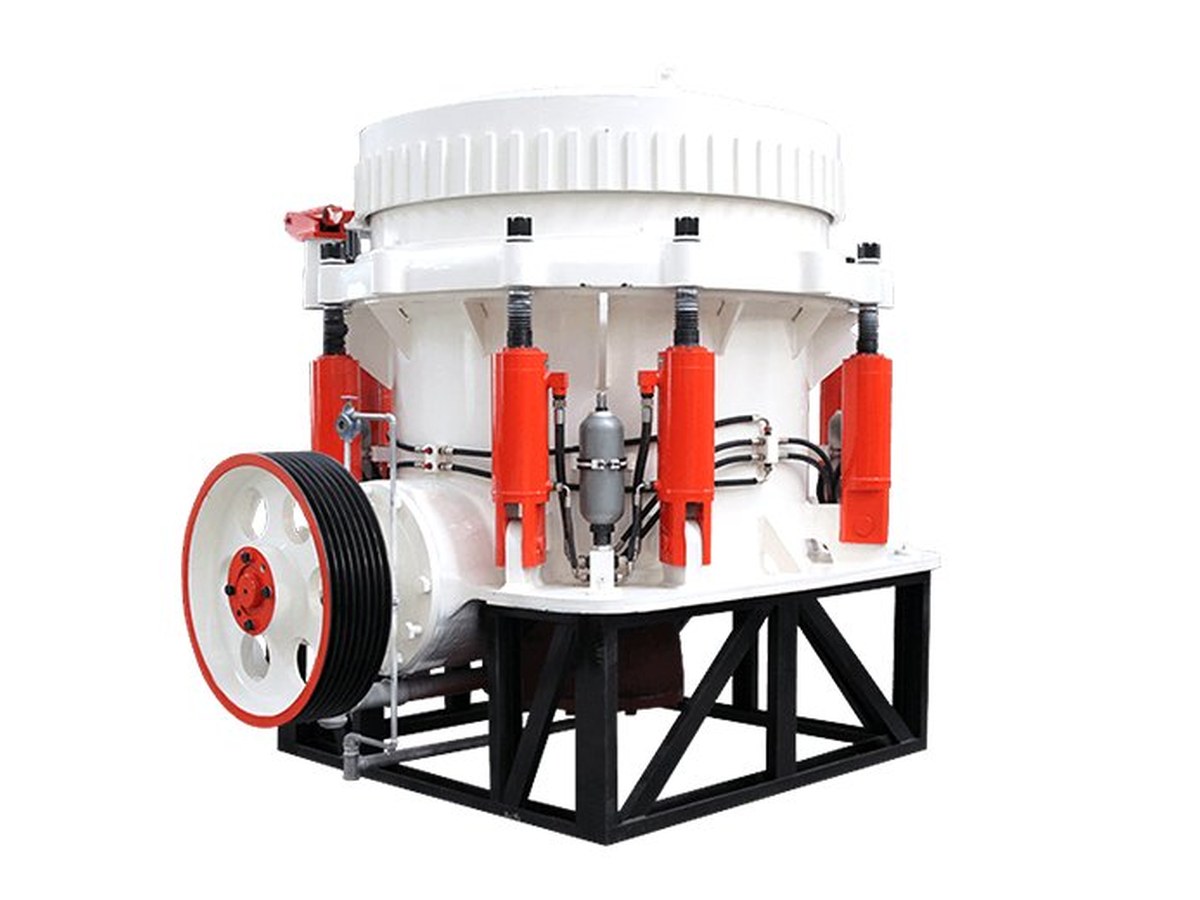

HPY Multi-cylinder Hydraulic Cone Crusher
HPY multi-cylinder hydraulic cone crusher for hard-rock secondary crushing, tertiary fine crushing and high-standard aggregate shaping.
- 1 series groups listed
- Used for high-capacity secondary crushing, tertiary fine crushing and premium aggregate shaping in large aggregate plants and metal mines.
Crushing

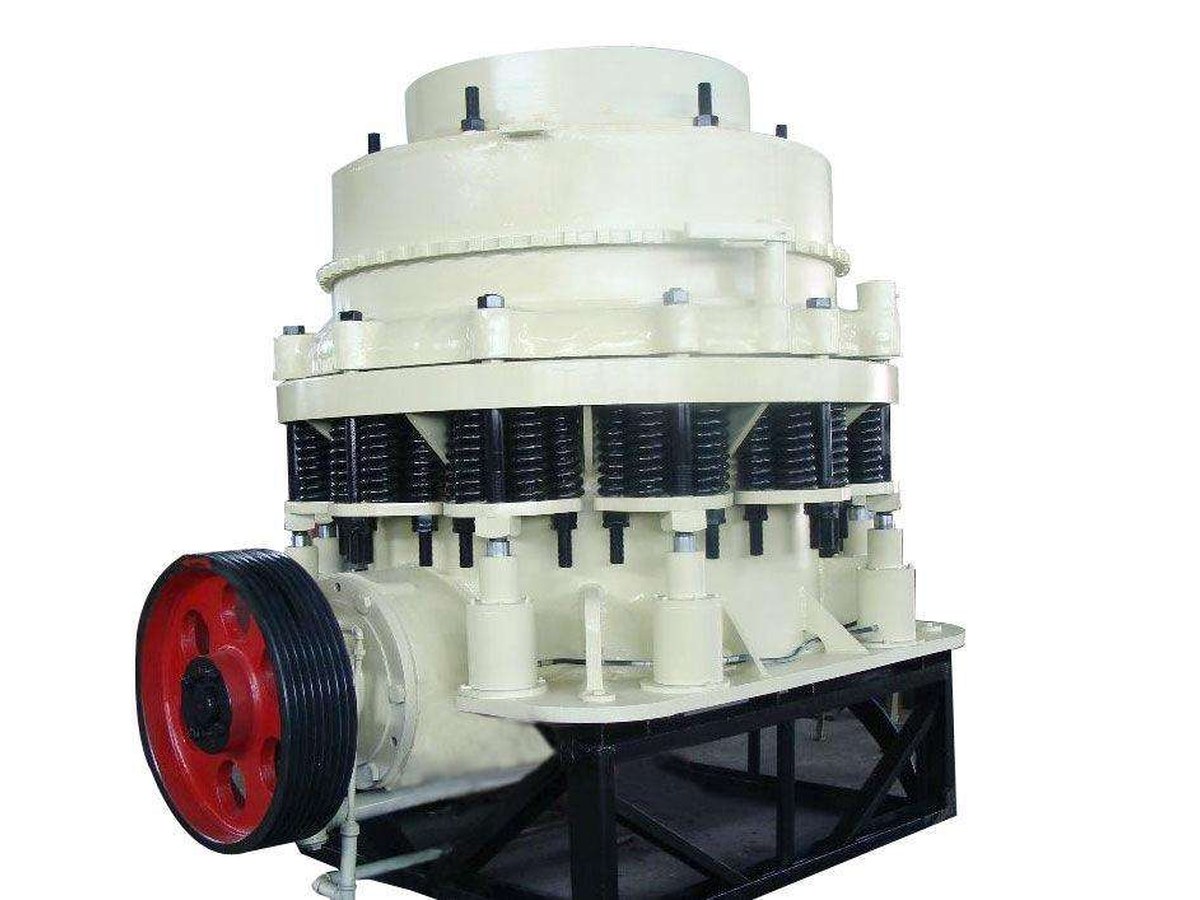

PYB / PYZ / PYD Spring Cone Crusher
Spring cone crusher for coarse, medium and fine crushing in small and medium aggregate plants, mine upgrading projects and mobile crushing lines.
- 3 series groups listed
- Used after primary crushing for medium crushing, fine crushing or lower-cost replacement projects in aggregate and mining lines.
Crushing

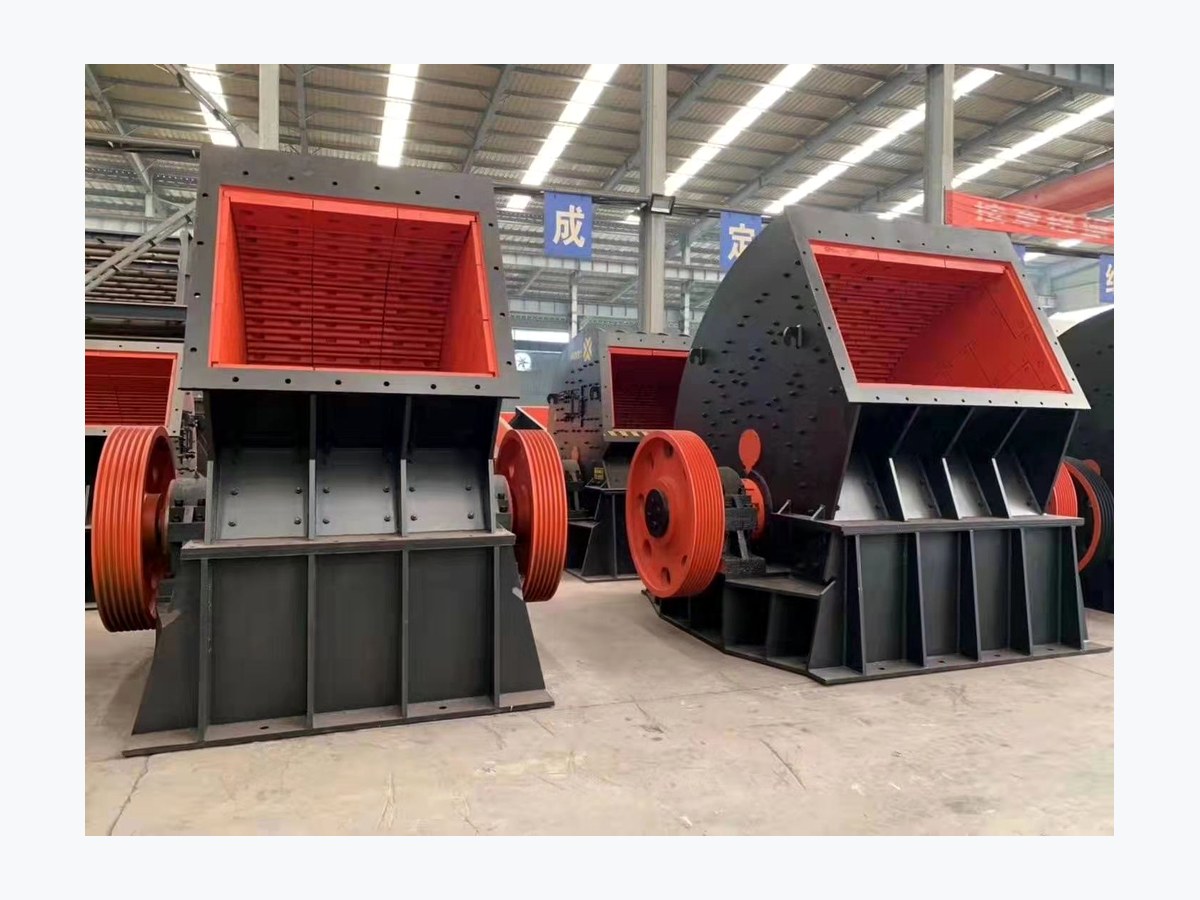

PCZ / PCF / 2PCZ Heavy Hammer Crusher
Heavy hammer crusher for single-stage coarse and medium crushing of suitable brittle materials, separated from ordinary PC hammer crusher and SHKX reversible fine crusher.
- 3 series groups listed
- Used for heavy-duty single-stage coarse and medium crushing where suitable large brittle material can be crushed directly into aggregate sizes.
Crushing

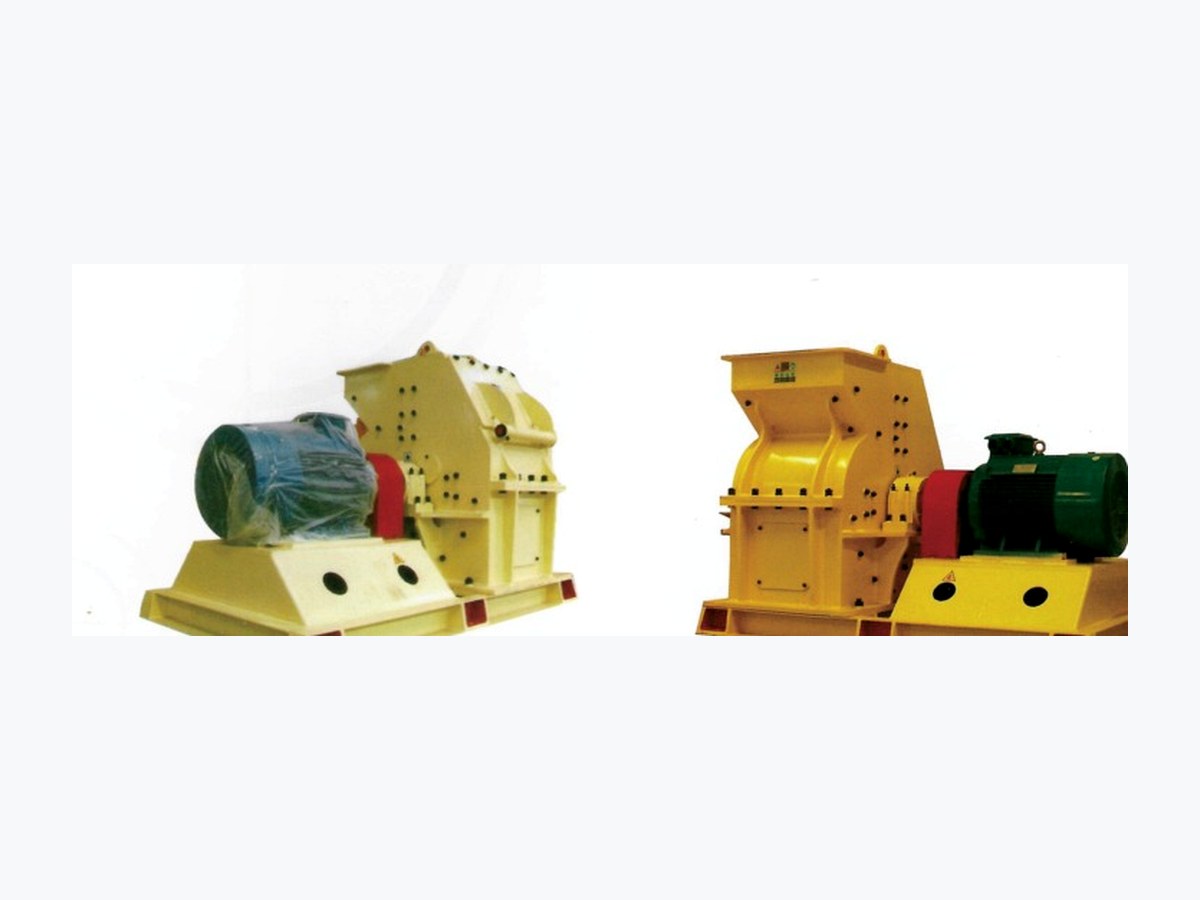

PC Hammer Crusher
PC ordinary single-stage hammer crusher for low-cost crushing of medium-hard and brittle materials such as limestone, coal, shale, gypsum and construction waste.
- 8 available models listed
- Used for one-stage size reduction in small and medium lines when the material is medium-hard, brittle and suitable for hammer crushing.
Fine Crushing

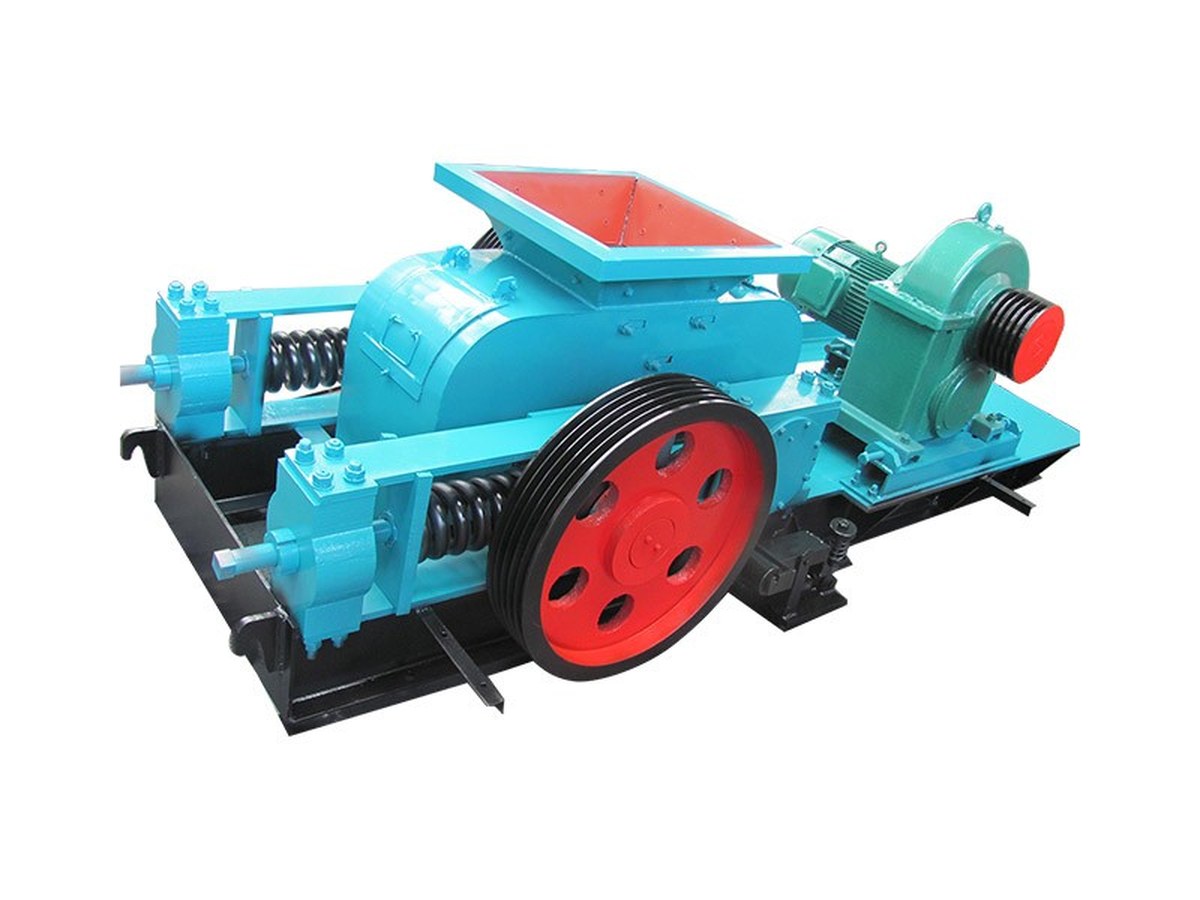

PSJ Double Roller Crusher
Double roller crushing equipment for medium and fine crushing, particle-size control and manufactured sand workflows.
- 8 available models listed
- Used after primary crushing for medium and fine crushing, sand making particle control or pre-washing fine crushing sections.
Fine Crushing

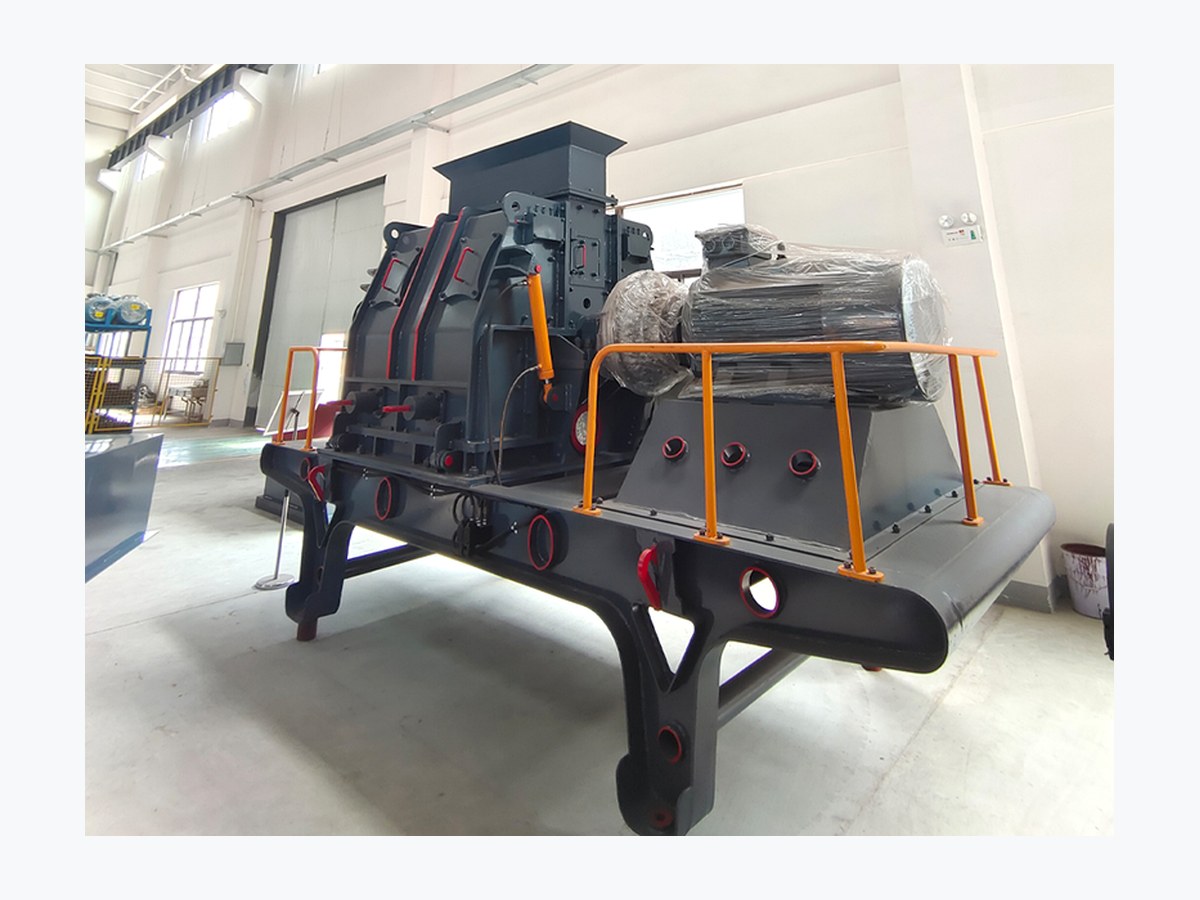

SHKX European Reversible Screenless Fine Crusher
SHKX European reversible screenless fine crusher for third-stage fine sand making and premium aggregate shaping, separated from ordinary PC hammer crusher and PCZ heavy hammer crusher.
- 4 available models listed
- Used for third-stage fine crushing, premium manufactured sand shaping, washed-sand back-end sand making and recycled fine aggregate processing.
Screening

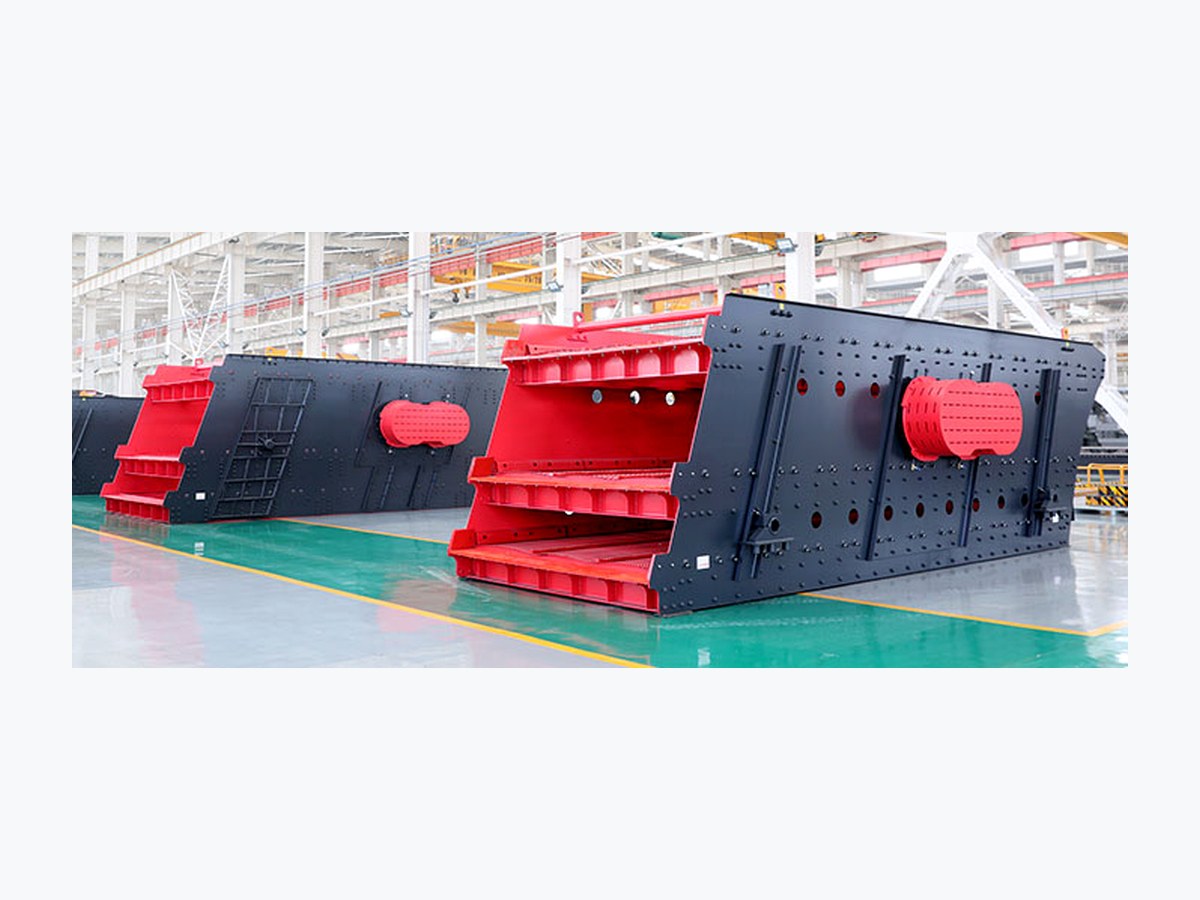

Vibrating Screen
Inclined vibrating screen, horizontal vibrating screen and dewatering screen for aggregate grading, fine screening and wet-process dewatering.
- 3 series groups listed
- Used for aggregate grading, manufactured sand fine classification and wet-process dewatering after washing or tailings recovery.
Screening / Washing & Recovery

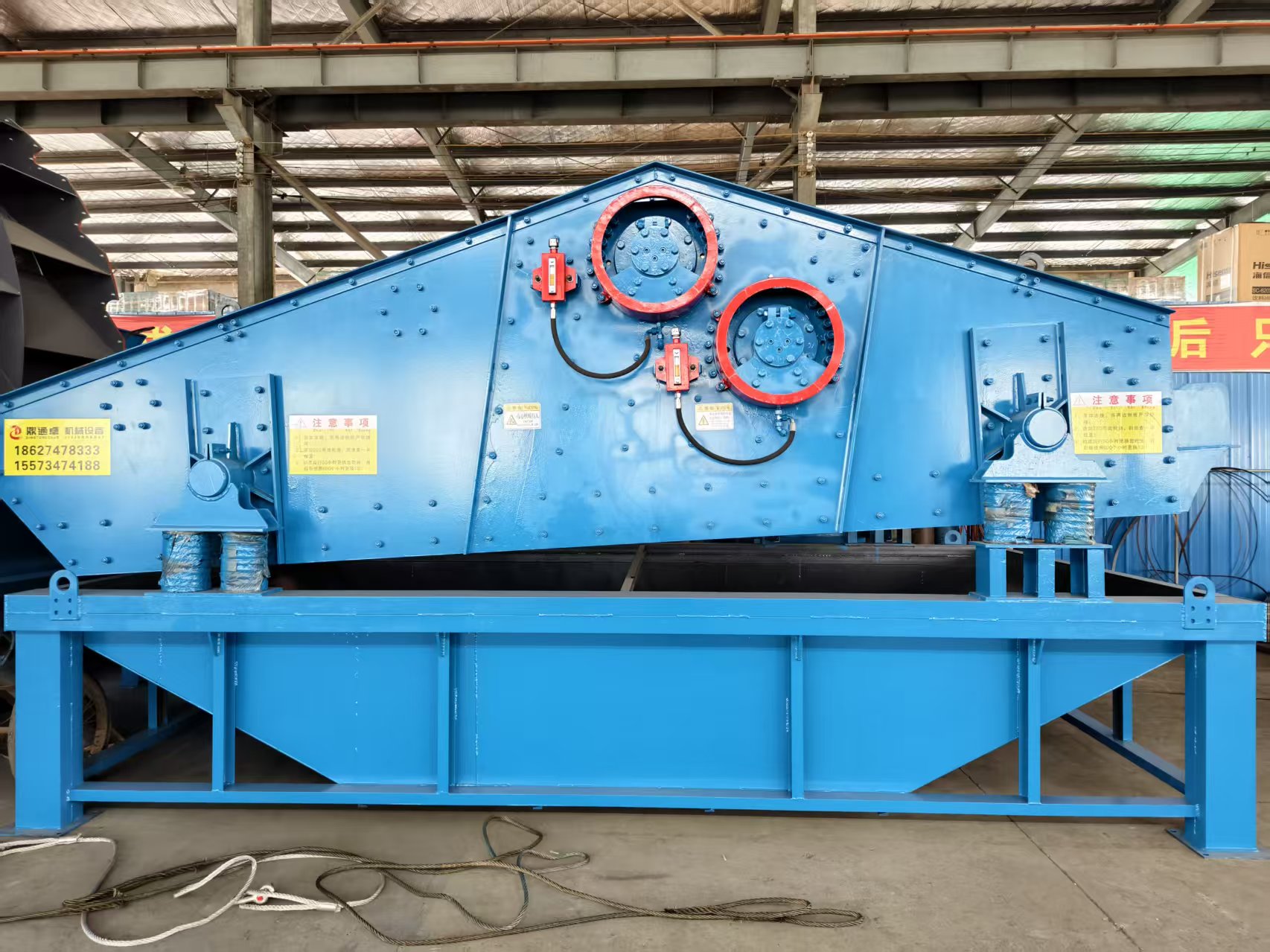

WLTS Dewatering Screen for Washed Sand
High-frequency wet-duty dewatering screen for washed sand, fine sand recovery underflow and tailings slurry before belt conveying, stockpiling or wastewater treatment.
- 5 available models listed
- Installed after wheel washers, spiral washers or WS fine sand recovery machines to reduce sand moisture, retain fine material and connect wet washing lines with belt conveying, storage or downstream wastewater treatment.
Screening

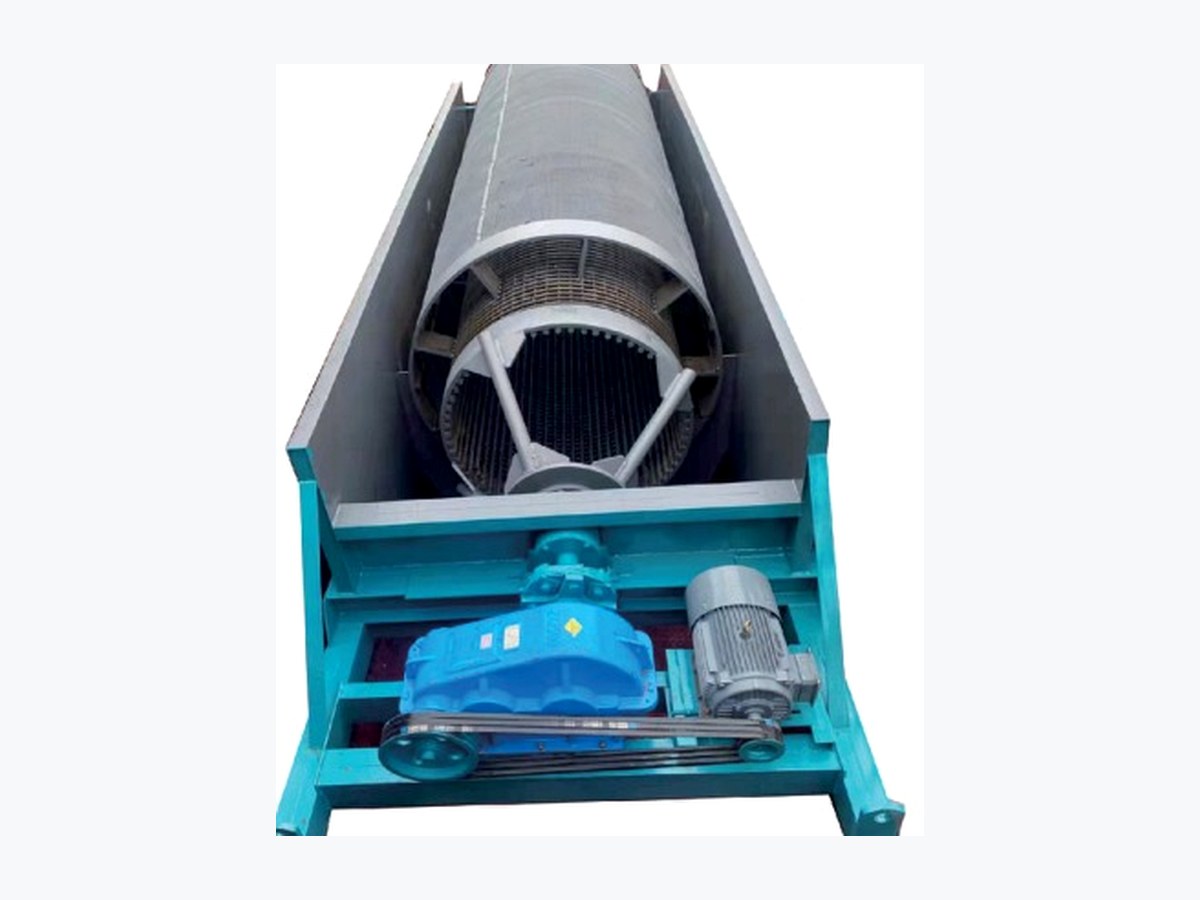

WLGSX Trommel Sand Screen
WLGSX rotary drum sand screen for dry/wet sand classification, mud-stone separation and anti-blocking pre-screening before washing lines.
- 5 available models listed
- Used for muddy sand, wet material, construction waste and mixed sand-stone pre-screening before washing, conveying or further separation.
Feeding

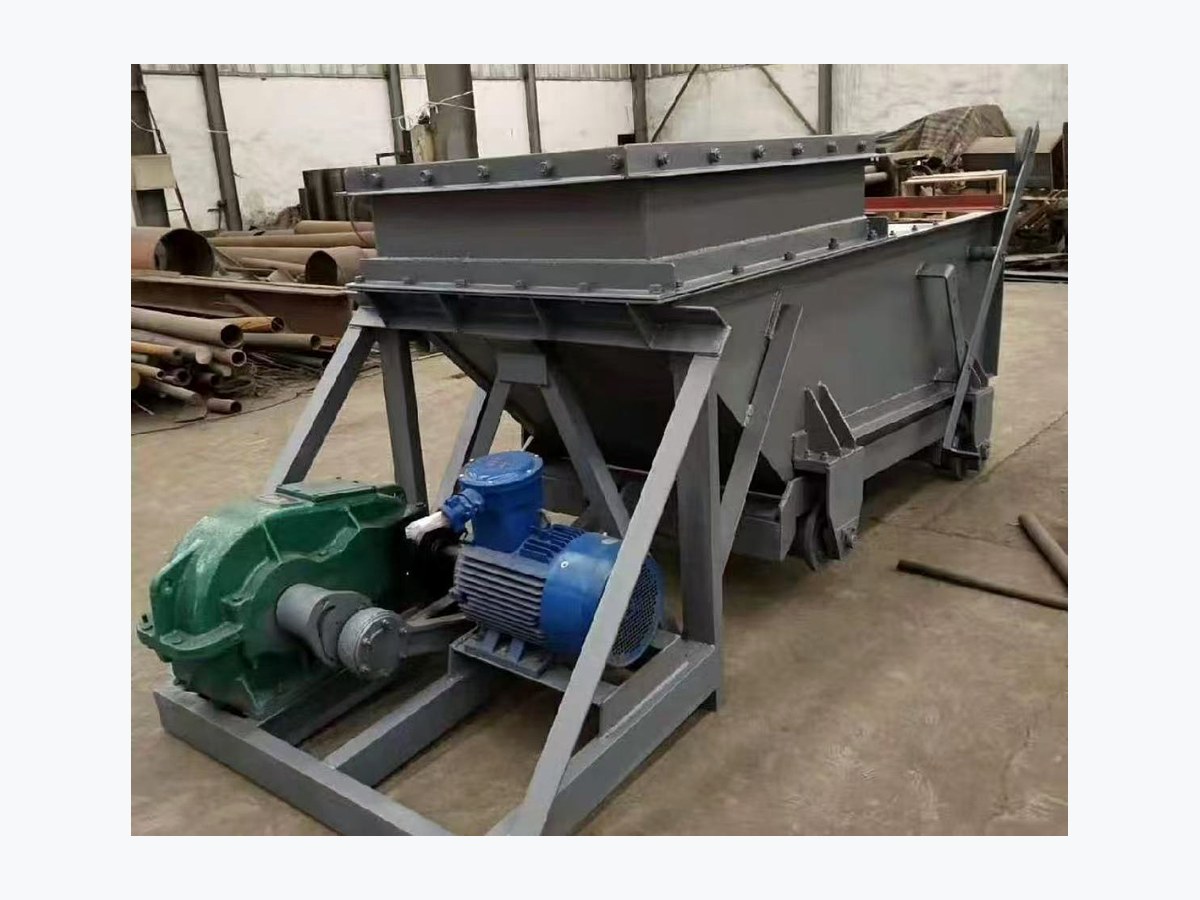

Feeding Equipment
ZSW / GZD trough vibrating feeder, GZT grizzly feeder and K type reciprocating feeder for aggregate, mining and bulk-material feeding.
- 3 series groups listed
- Used below hoppers or before crushers and screens to deliver material continuously, control feed rate, protect downstream equipment and connect production-line stages.
Washing & Recovery

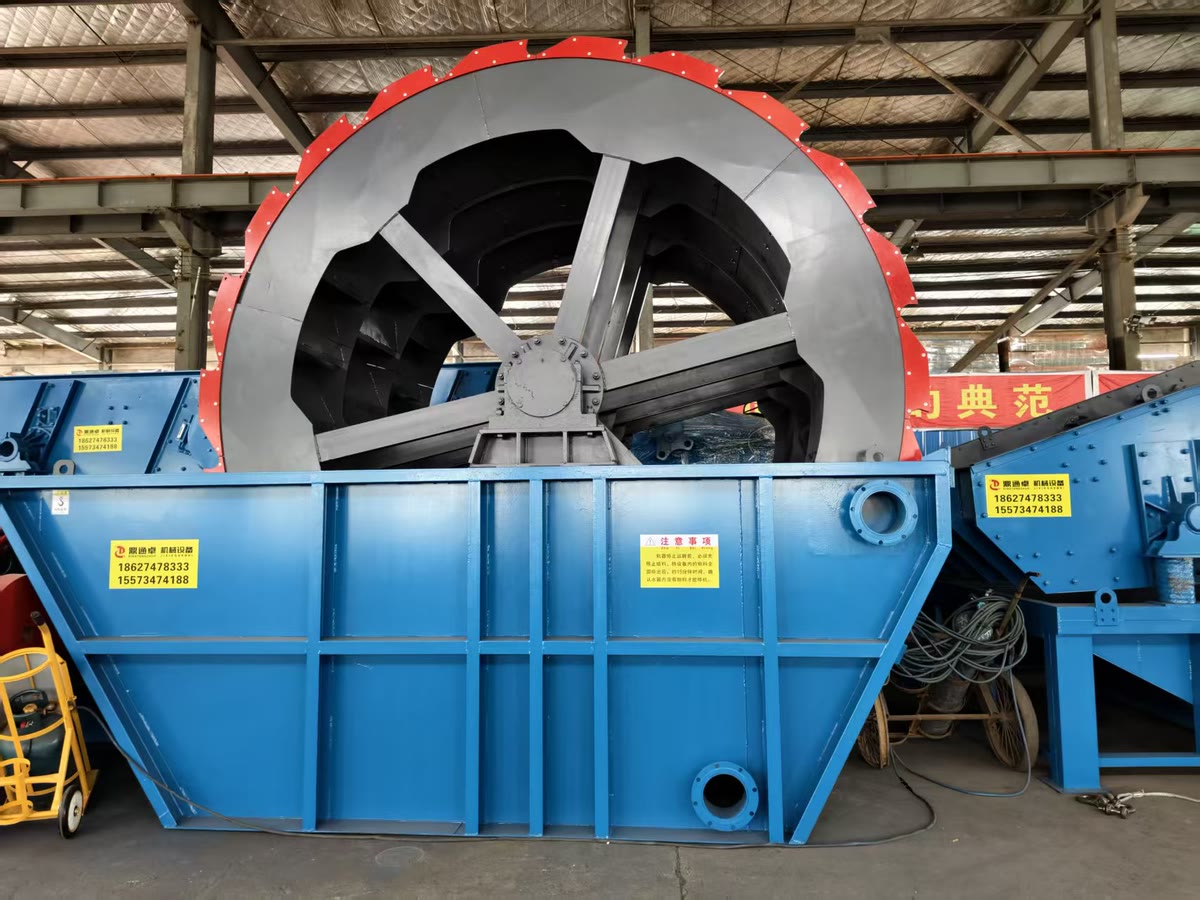

XS / LSX Sand Washing Machine
Wheel-bucket and spiral sand washing machines for manufactured sand, aggregate and recycled-material washing lines, selected by mud content, washing intensity, water use and downstream recovery needs.
- 3 series groups listed
- Cleans manufactured sand, river sand, quartz sand, weathered sand or recycled aggregate before dewatering, fine sand recovery or finished-material conveying.
Washing & Recovery

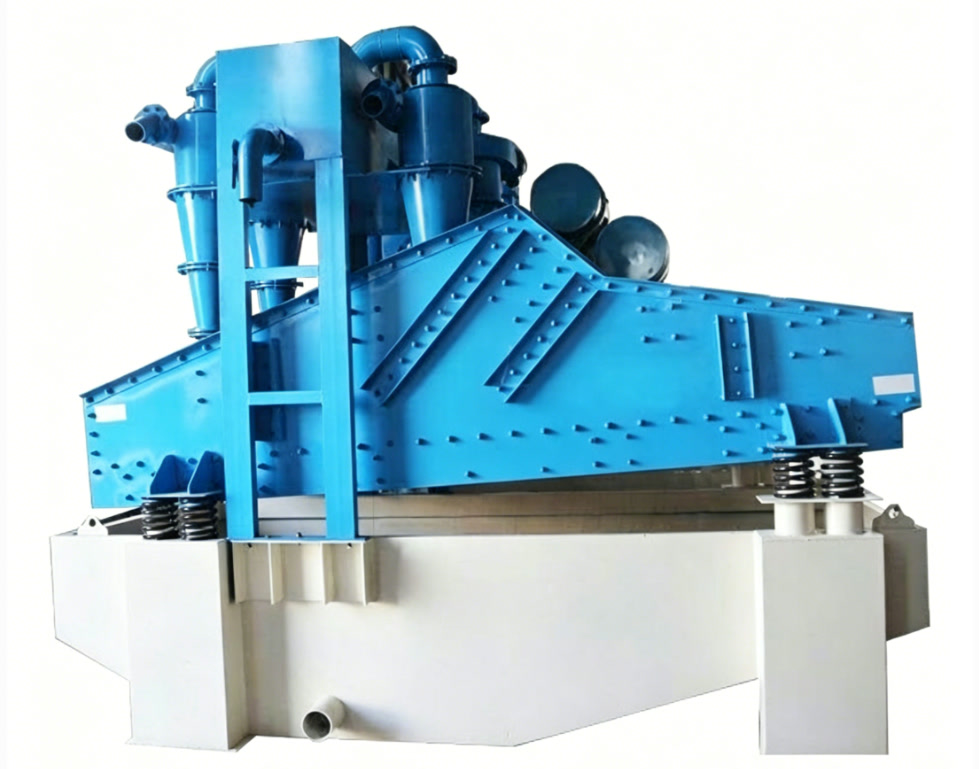

WS Fine Sand Recovery Machine
Fine sand recovery machine for sand washing overflow, combining slurry pump, hydrocyclone concentration and dewatering to recover saleable 0.075-0.6 mm sand before wastewater treatment.
- 6 available models listed
- Installed after wet washing to recover fine sand from overflow slurry and reduce solids load before settling ponds or filter presses.
Washing & Recovery

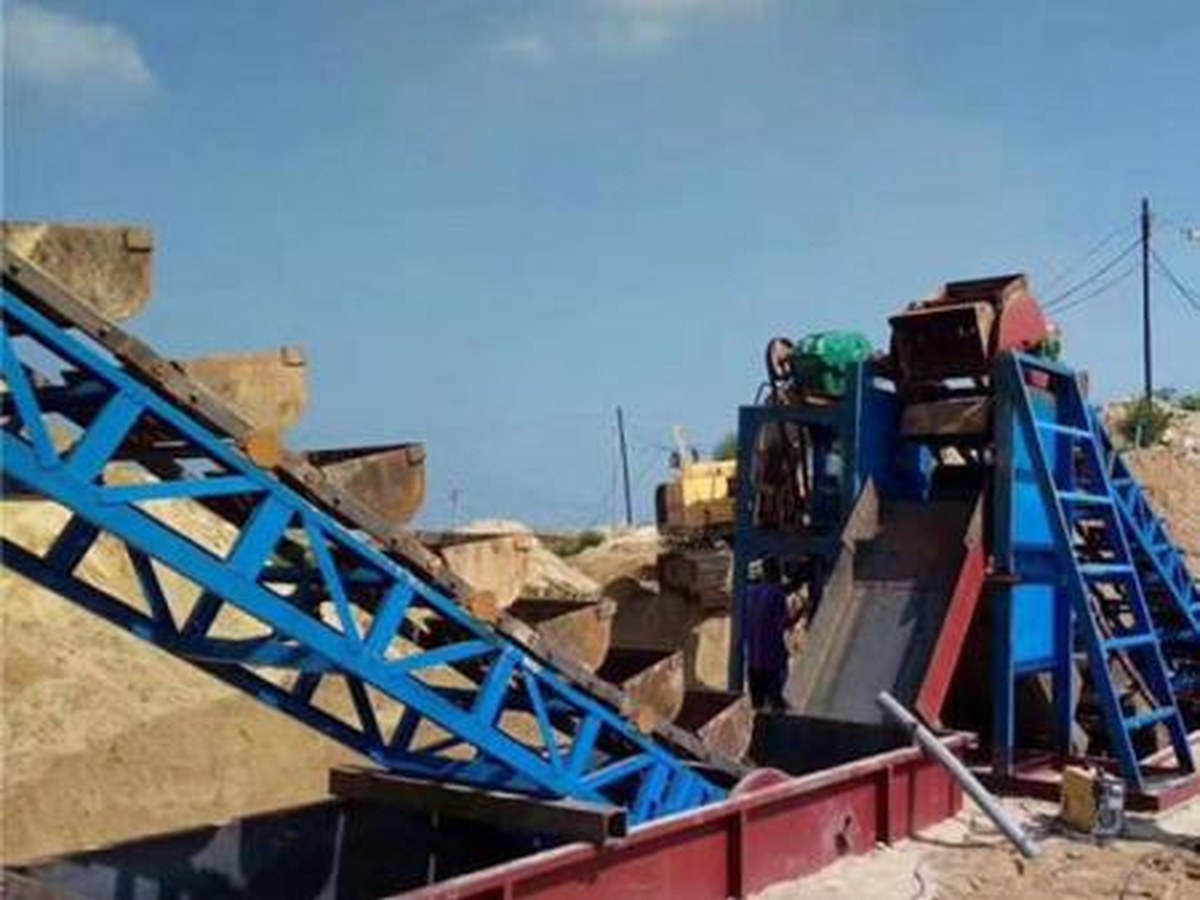

XSJ Chain Bucket Elevator
Inclined chain bucket lifting equipment for wet sand, washed aggregate and washing-line material transfer.
- 4 available models listed
- Used for wet sand lifting, drainage during lifting and process transfer between WLGSX trommel screen, SHY washing/dewatering/recovery machine and stockpile conveying sections.
Washing & Recovery

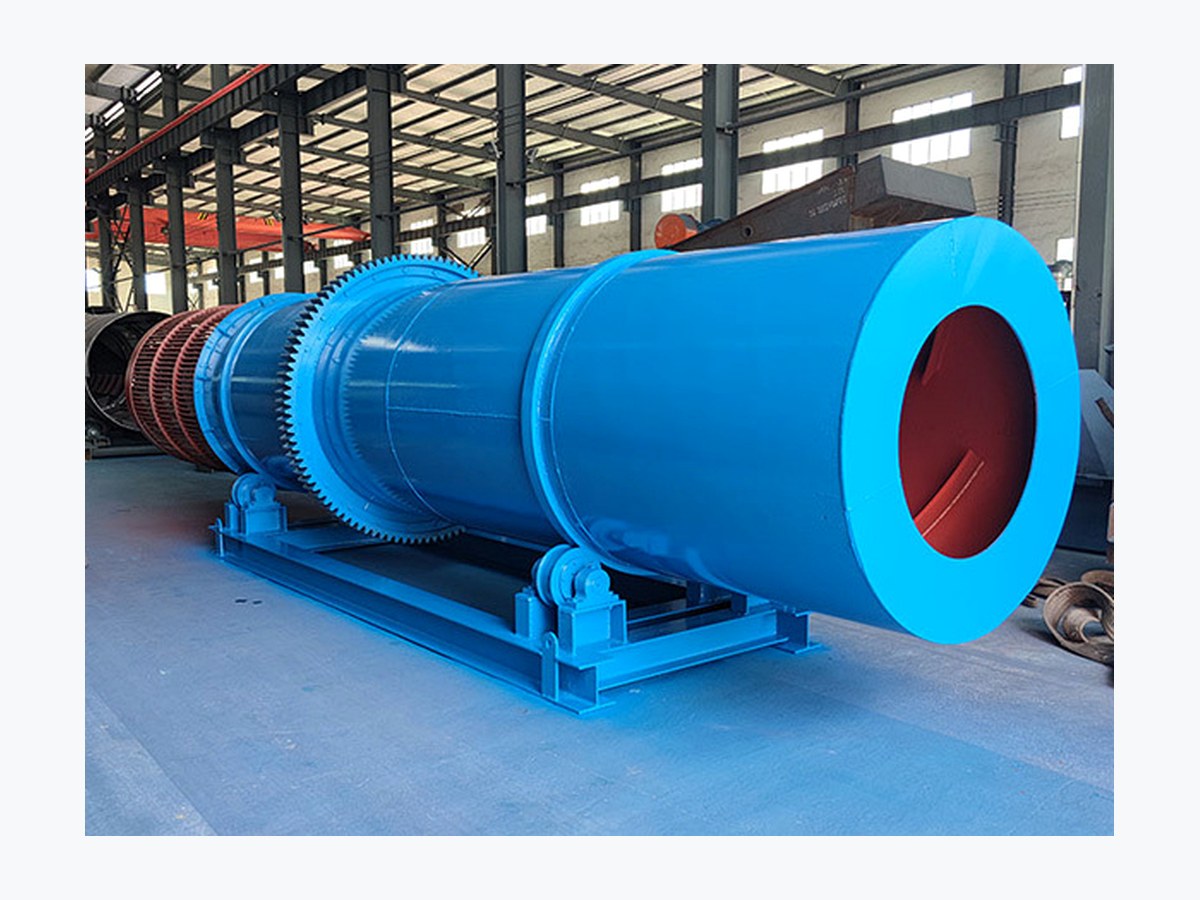

Rotary Scrubber
Rotary scrubber, trommel stone washer and rotary drum scrubber for high-clay stone, weathered sand, ore and construction-waste washing.
- 5 available models listed
- Used before downstream sand washing, fine sand recovery or wastewater treatment to scrub high-clay stones, weathered material, ore and construction-waste aggregates.
Washing & Recovery

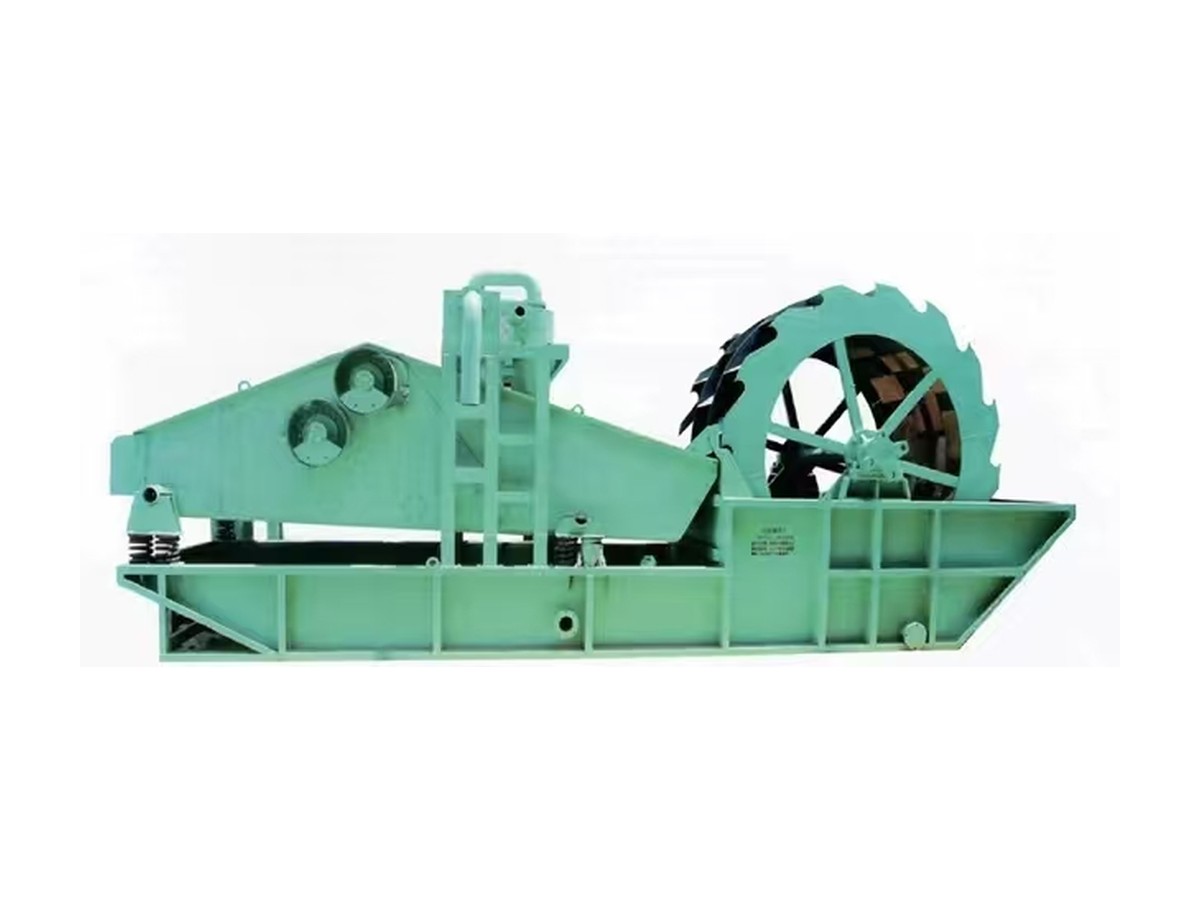

SHY Integrated Sand Washing & Recovery Machine
Compact wet-process machine combining wheel-bucket washing, hydrocyclone fine sand recovery and dewatering for manufactured sand, river sand, weathered sand and tailings sand.
- 4 available models listed
- Combines washing, fine sand recovery and dewatering in one compact wet-process unit for sites that need fewer transfer points.
Environmental

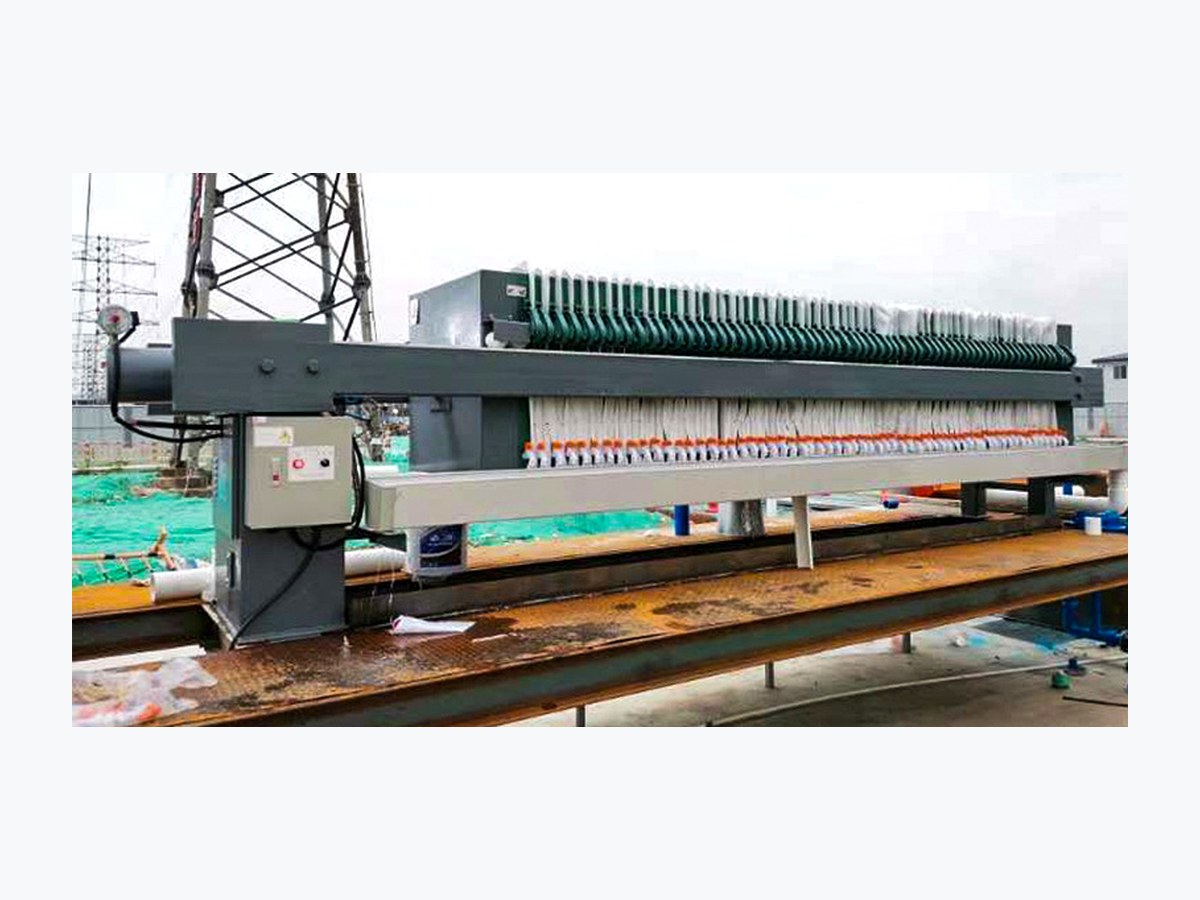

HHT Filter Press for Sand Washing Wastewater
Automatic plate-pulling filter press for sand-washing slurry, mud cake discharge and process-water reuse after fine sand recovery or settling.
- 6 available models listed
- End-stage slurry treatment after sand washing and WS fine sand recovery, separating fine mud slurry into filter cake and filtrate water.
Conveying

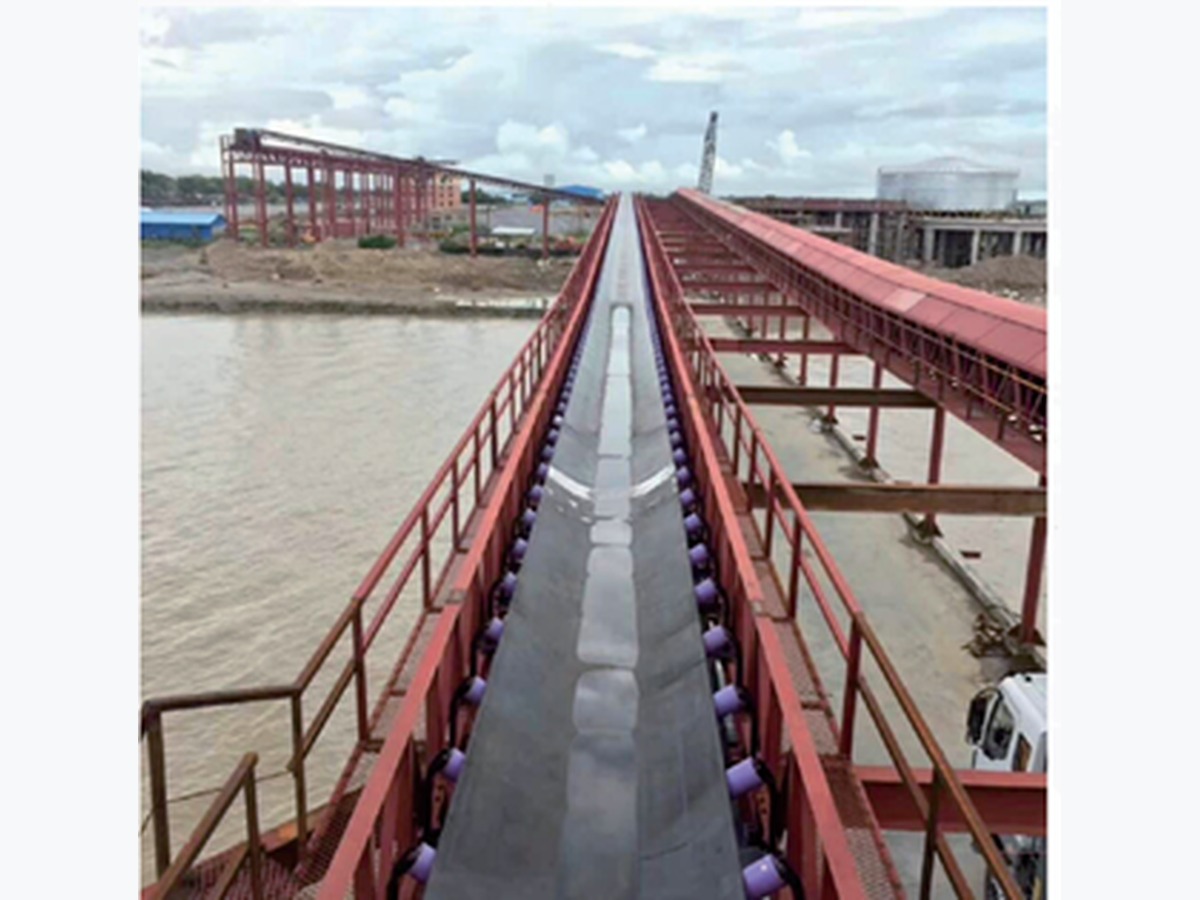

WLB Belt Conveyor
Standard belt conveying equipment for aggregate, manufactured sand, tailings and transfer sections in crushing and washing lines.
- 4 available models listed
- Used to connect crushers, vibrating screens, SHY washing/dewatering/recovery machines and stockpile sections in sand and aggregate production lines.
Wear Parts & Spares
Choose spare parts through 6 procurement categories
Parts are handled as a dedicated procurement catalog, organized by crusher wear parts, cone crusher parts, vibrating screen parts, washing / recovery parts, conveyor parts and drive / common parts. For inquiry, send the machine series, part photo, drawing or key dimensions so the suitable host equipment and required quantity can be checked.
Send the equipment name or series first.
Use the part category below, or send a photo.
Confirm dimensions before quotation.
01

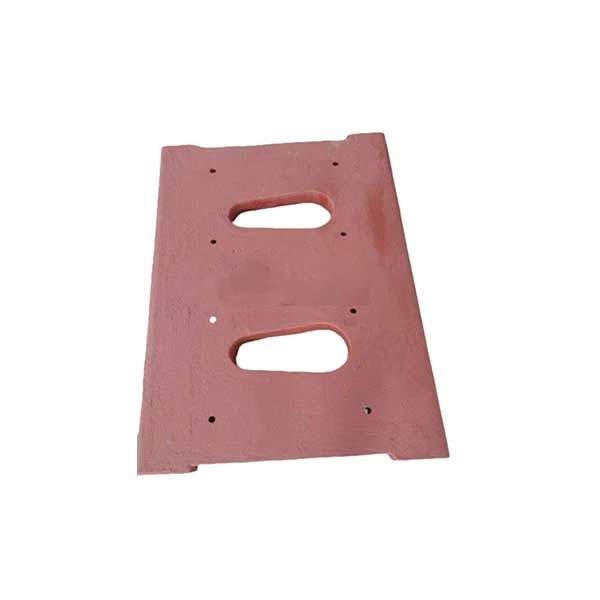

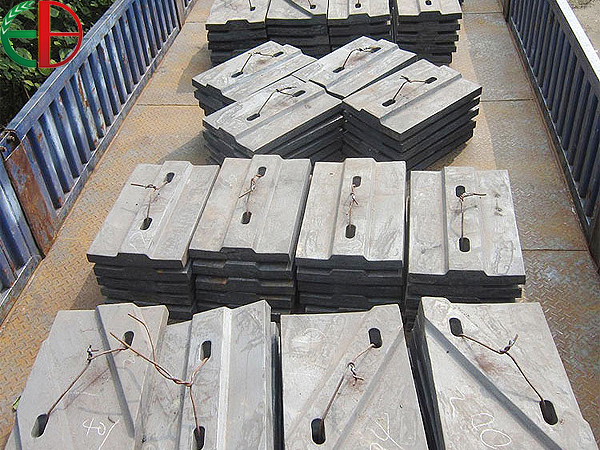

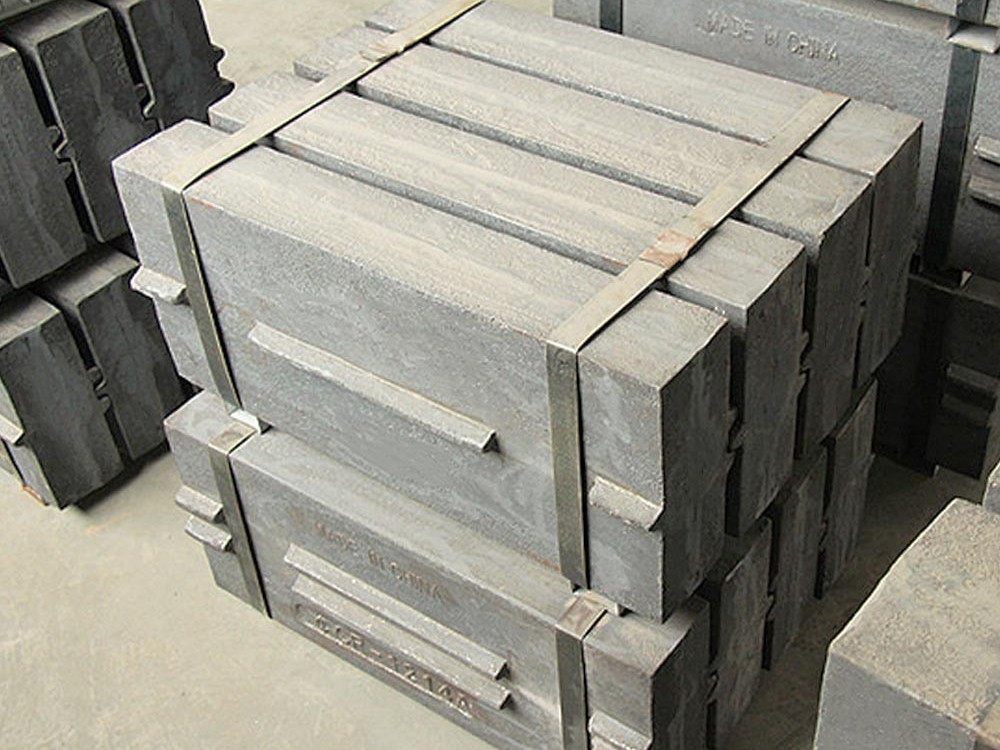

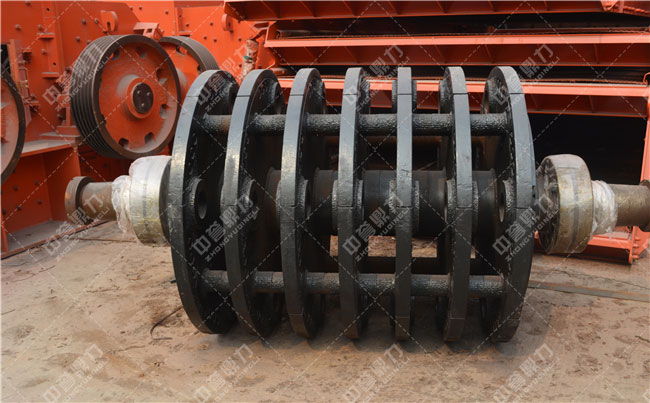

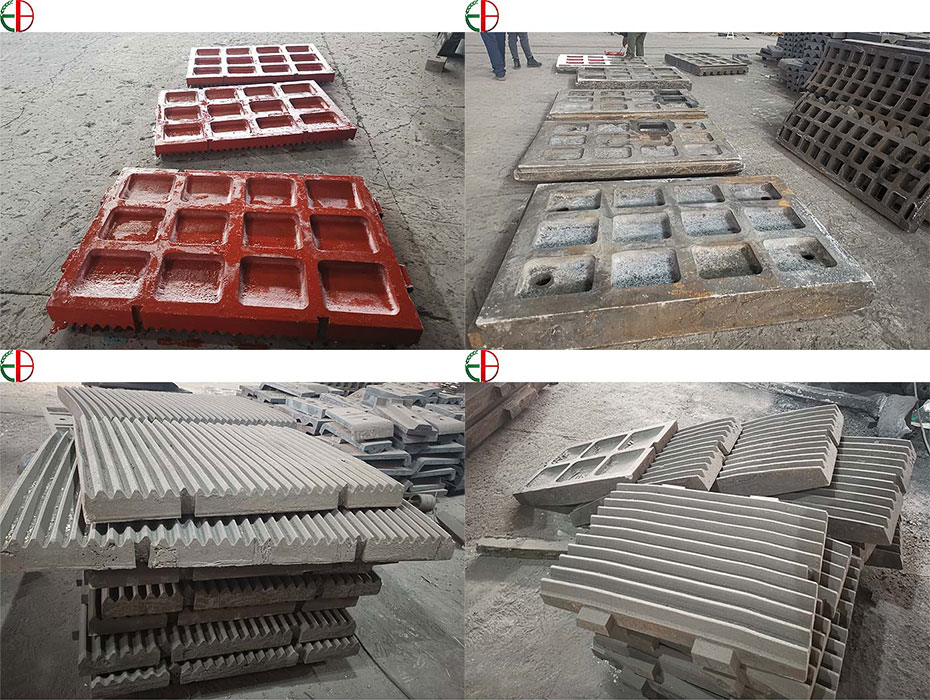

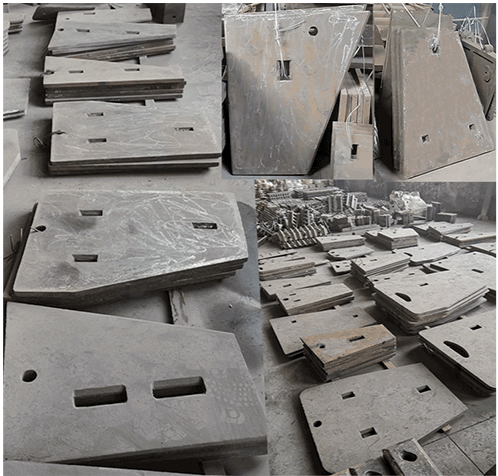

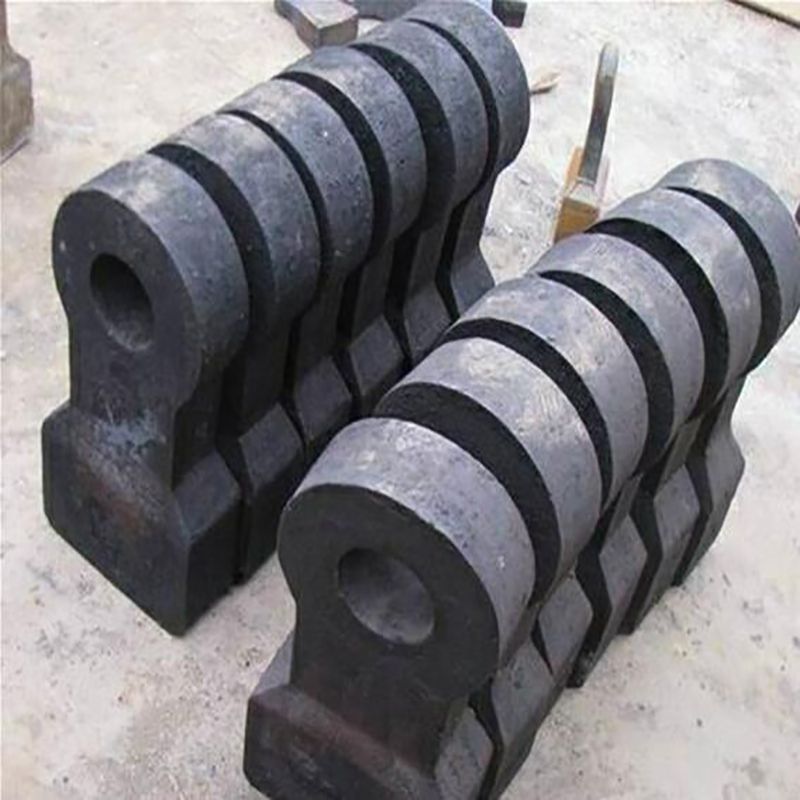

Crusher Wear Parts
Wear parts for jaw, hammer, heavy hammer, impact and fine crushers; select by crusher type, cavity position and material condition.
-
-
-
-
-
-
-
-
02

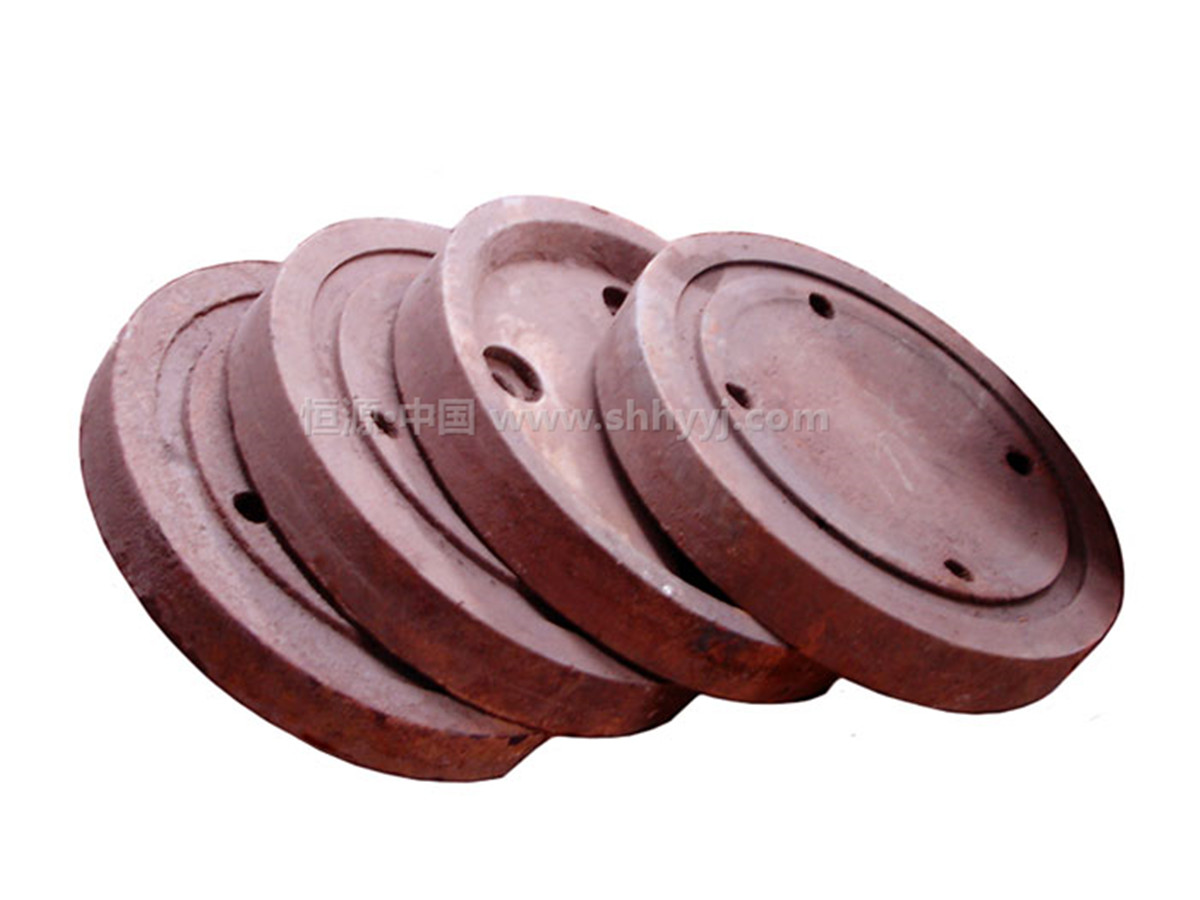

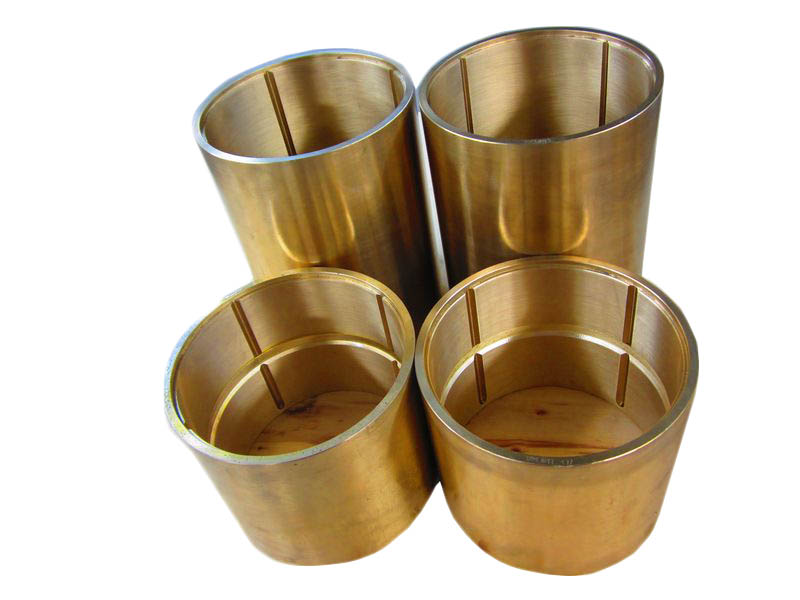

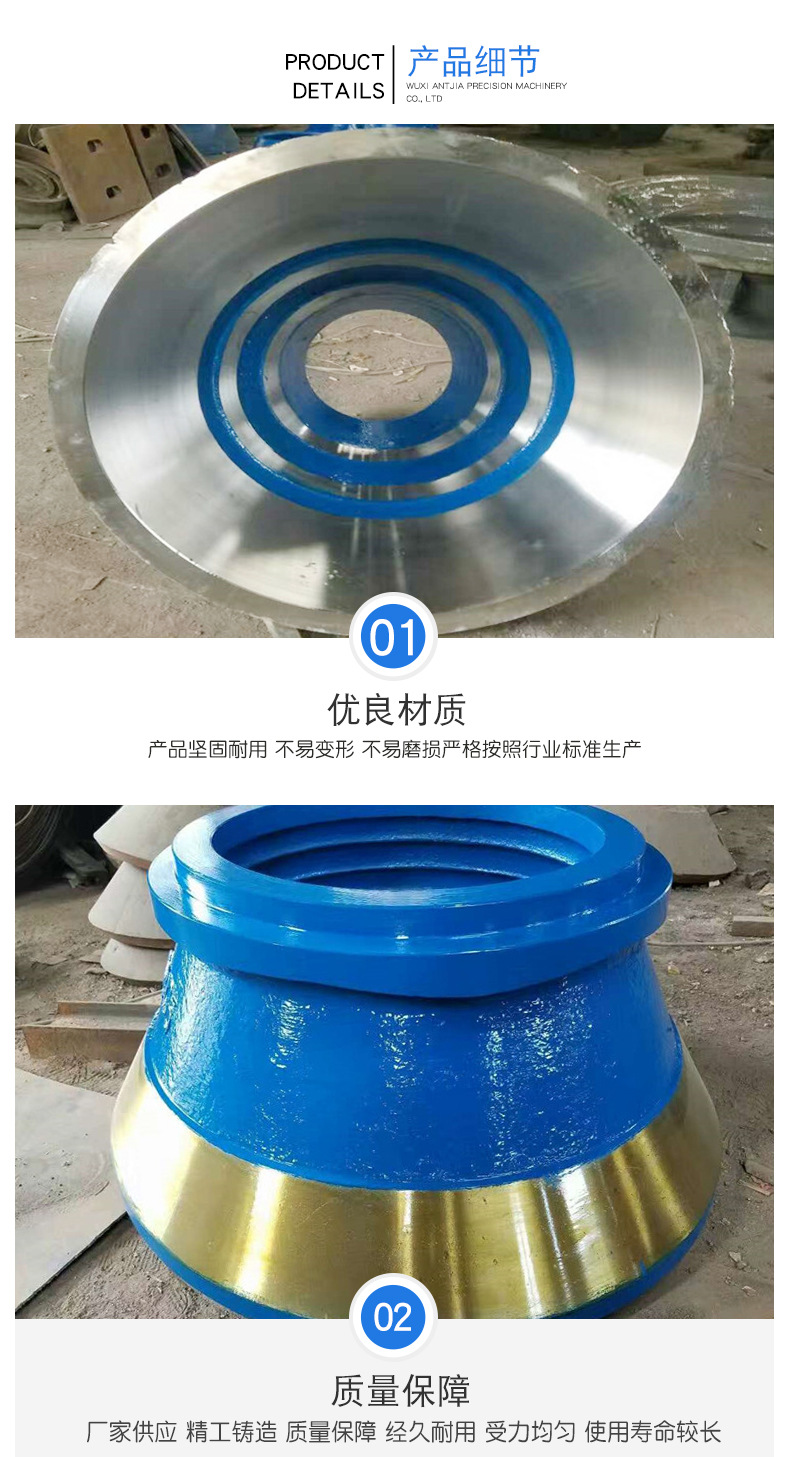

Cone Crusher Parts
Cone crusher liner sets and related crushing, feeding and transmission parts for spring, single-cylinder and multi-cylinder cone crushers.
-
-
-
-
03

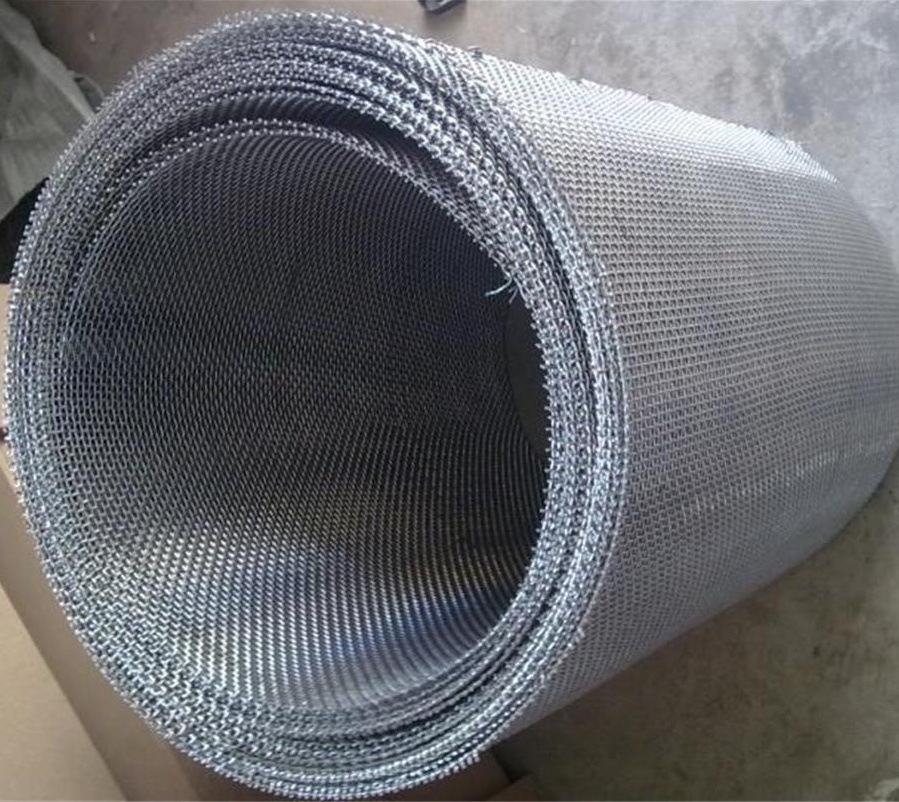

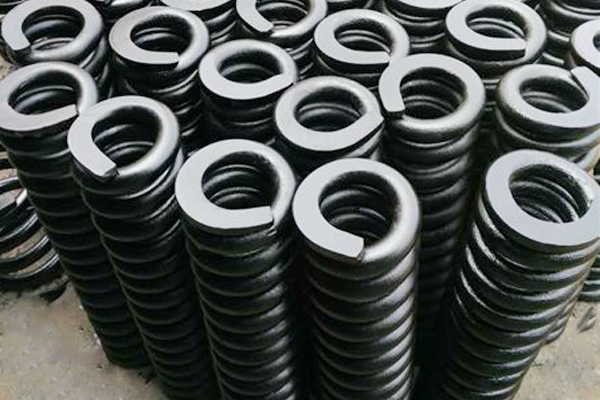

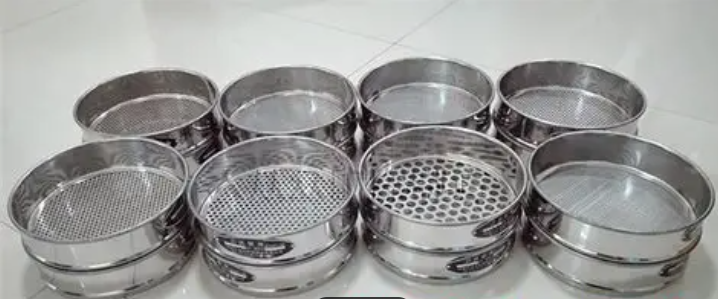

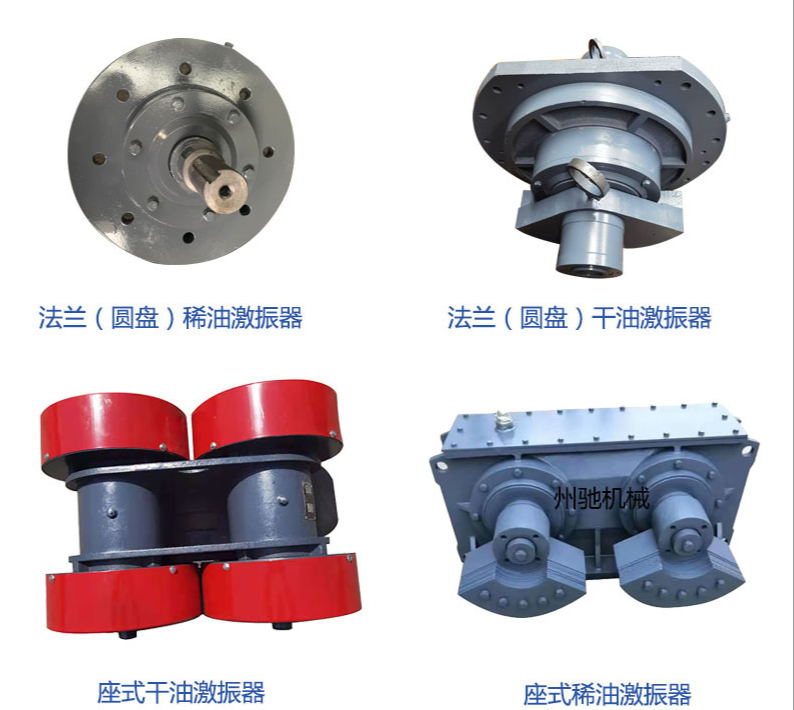

Vibrating Screen Parts
Screening surfaces and structural parts for inclined screens, horizontal screens, dewatering screens and trommel-related screening sections.
-
-
-
-
04

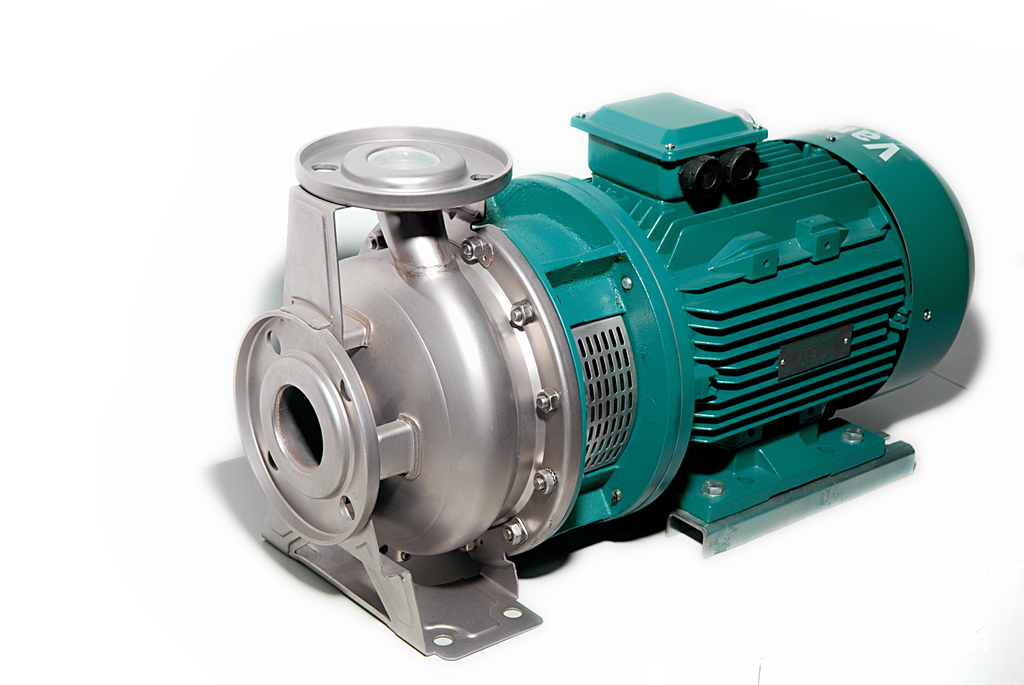

Washing & Recovery Parts
Wear and service parts for sand washers, fine sand recovery machines, hydrocyclone systems and water-processing units.
-
-
17

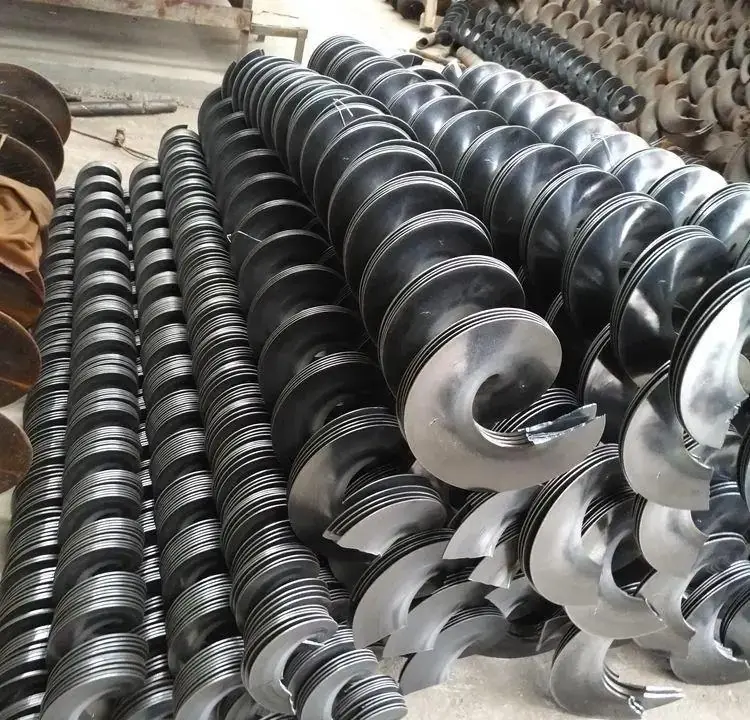

Spiral Blade / Screw Blade
螺旋叶片
Used with: Spiral sand washer
Search terms: Spiral Blade, Screw Blade
-
05

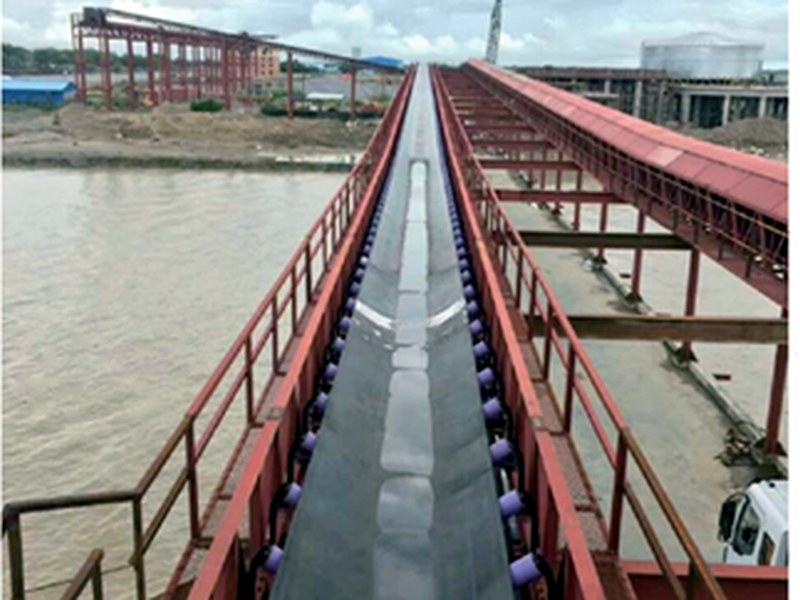

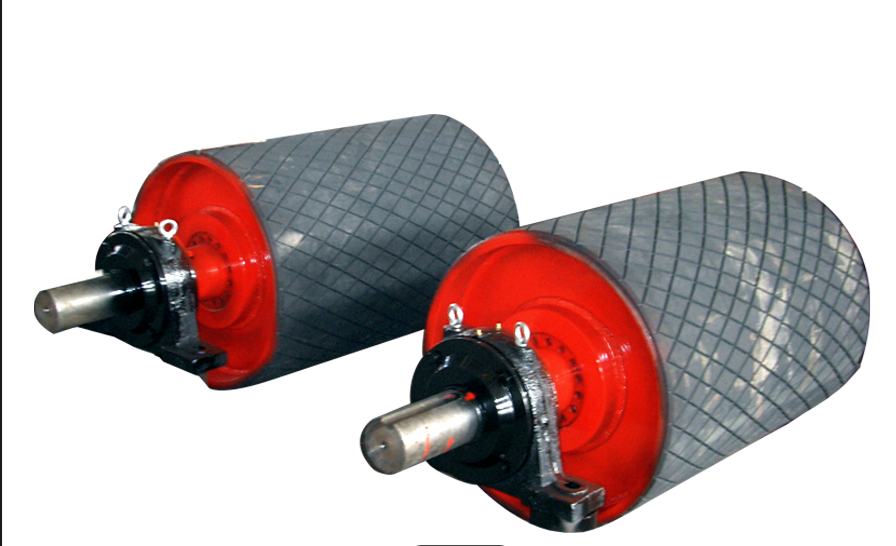

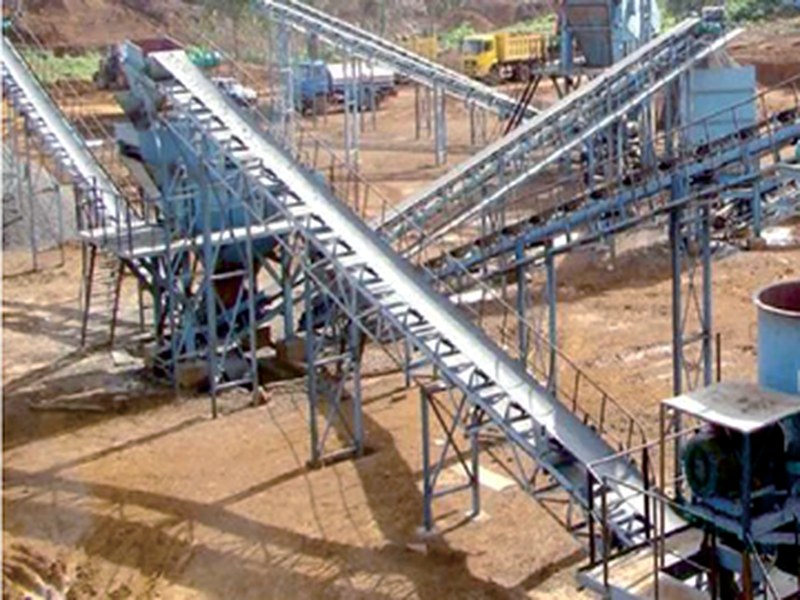

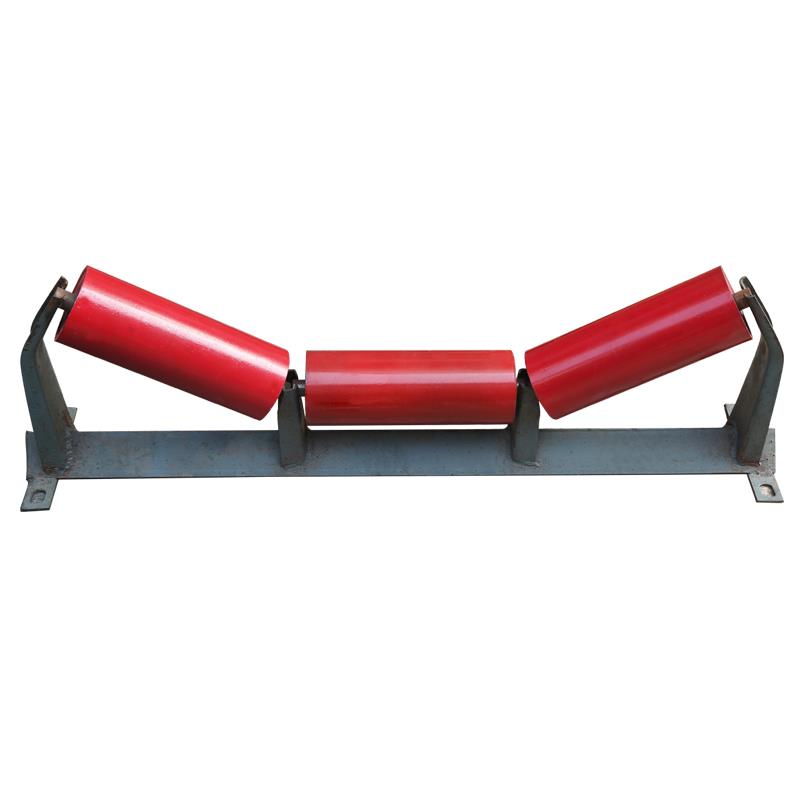

Conveyor Parts
Belt conveyor carrying, driving, cleaning and support parts for aggregate transfer and finished-material stockpiling.
-
-
-
-
-
-
06

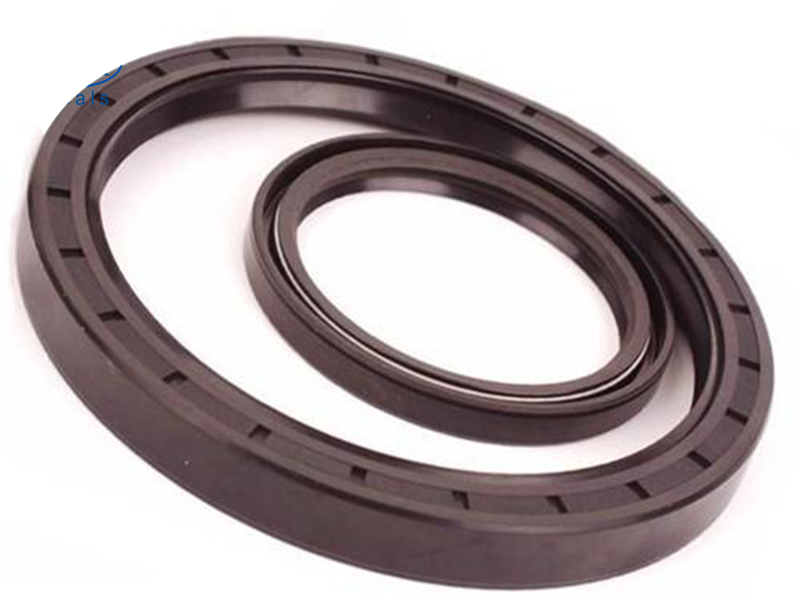

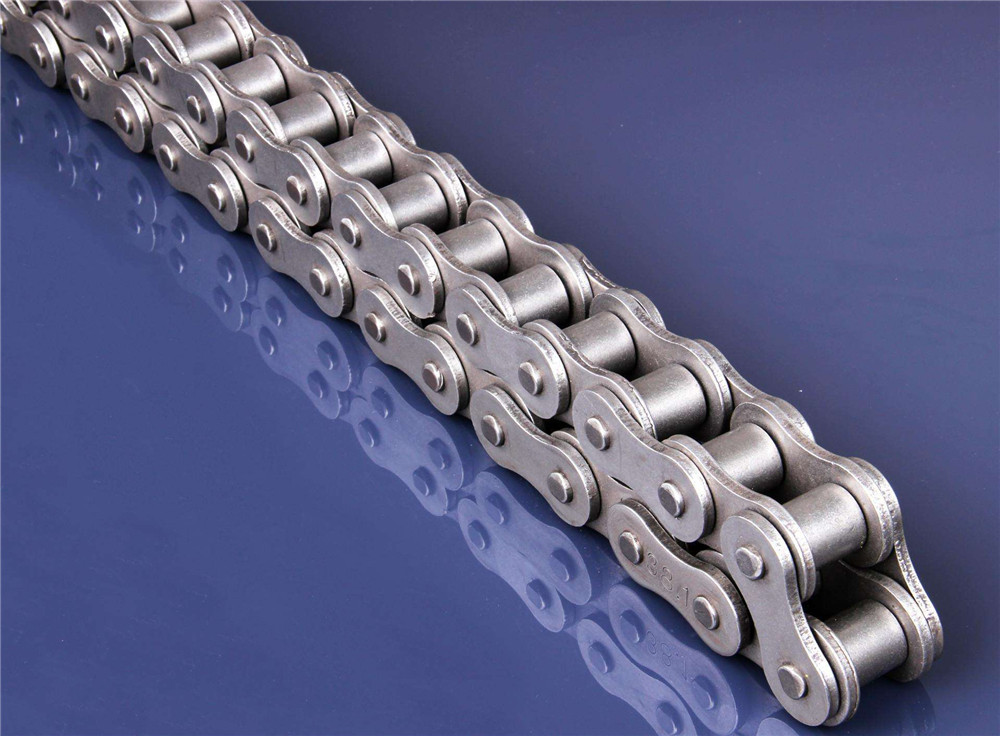

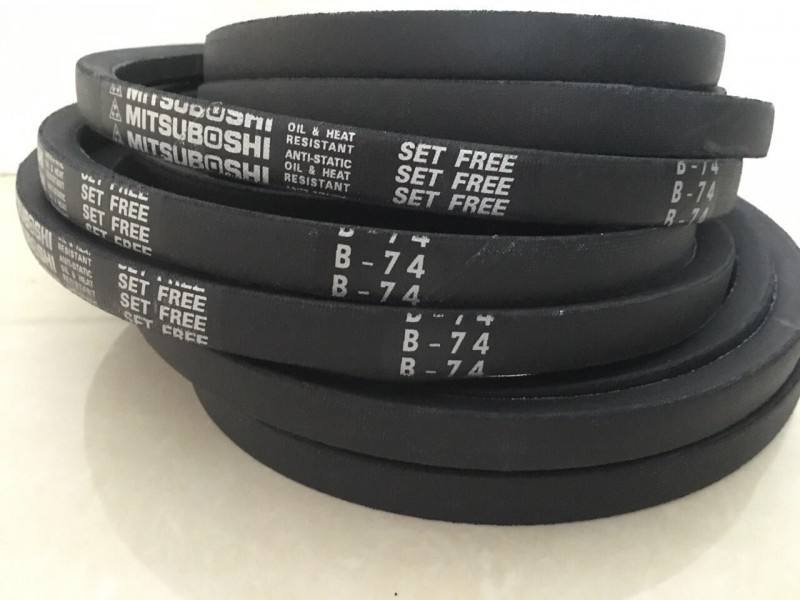

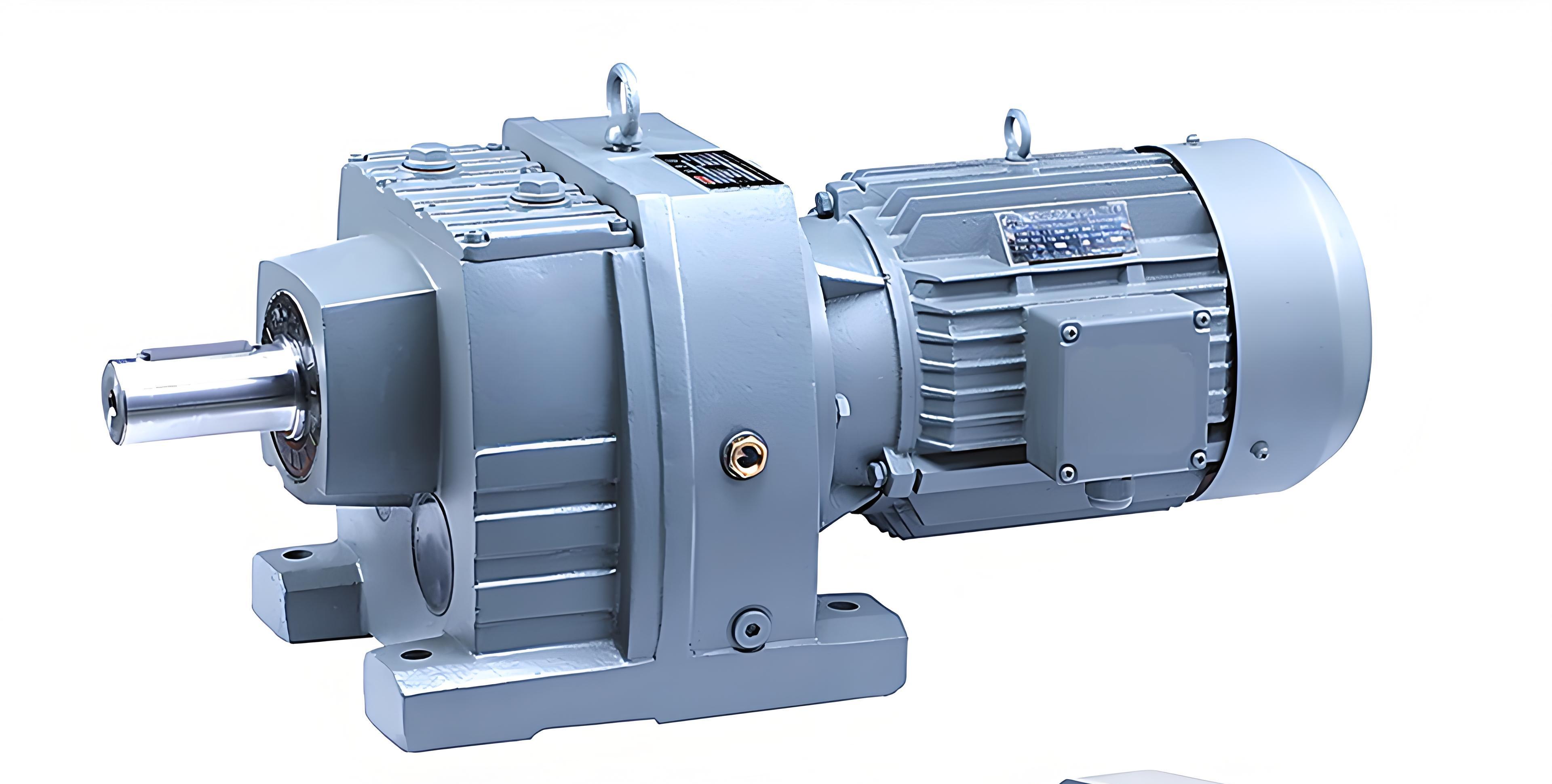

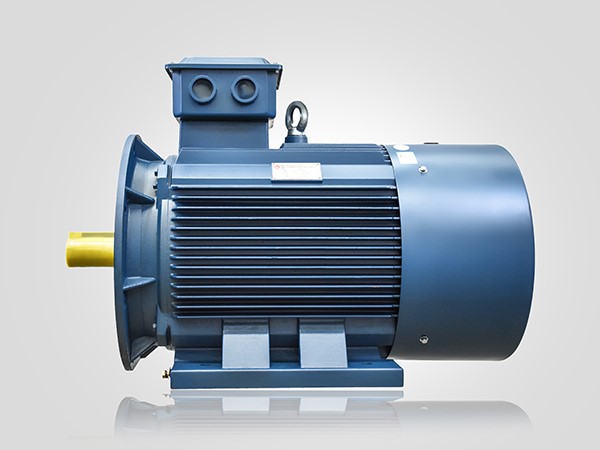

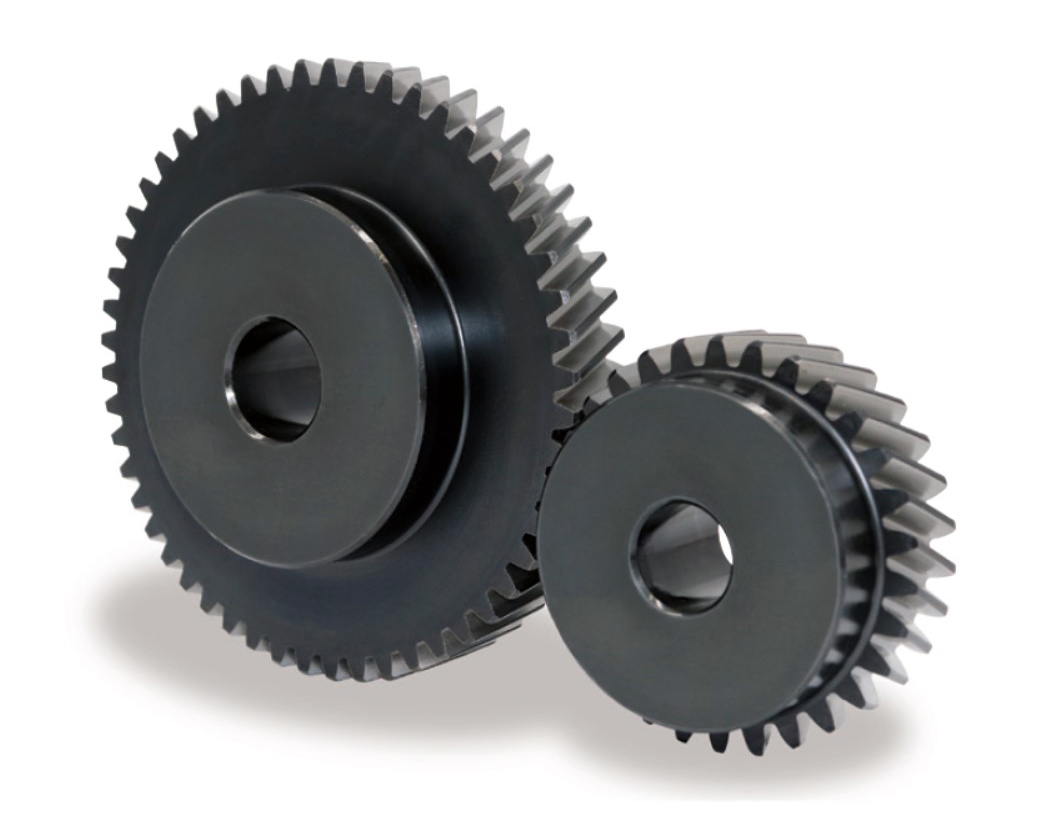

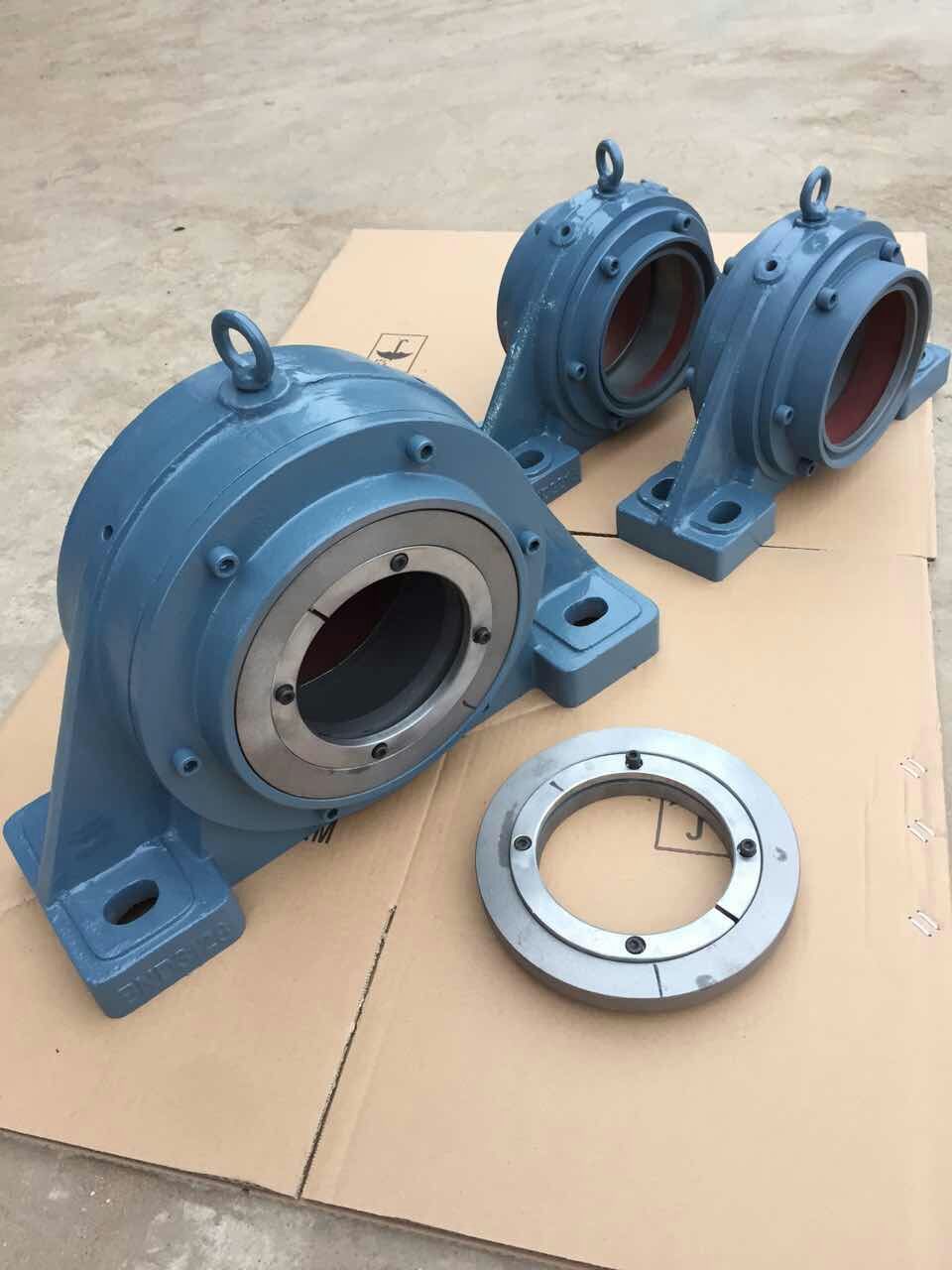

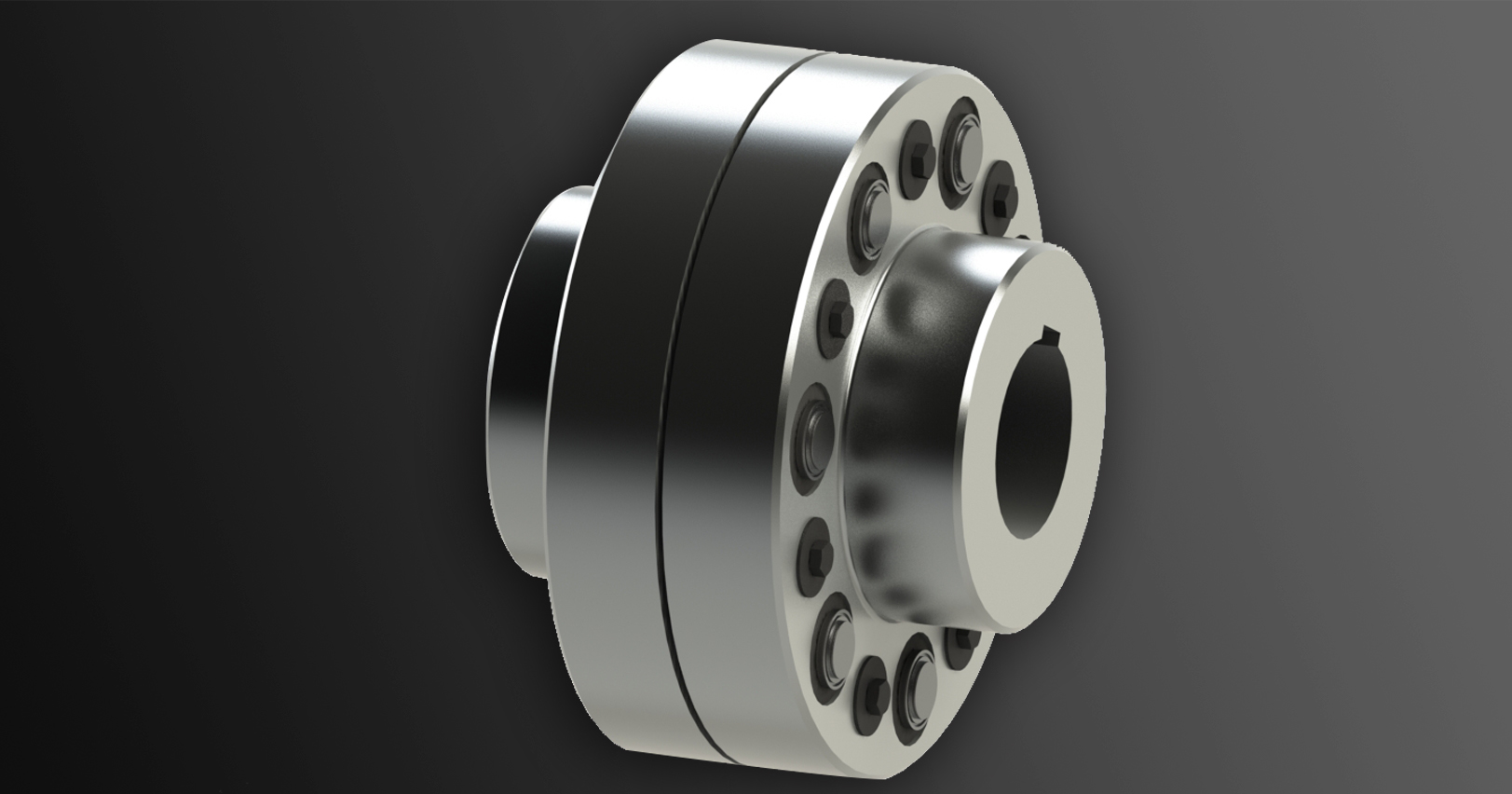

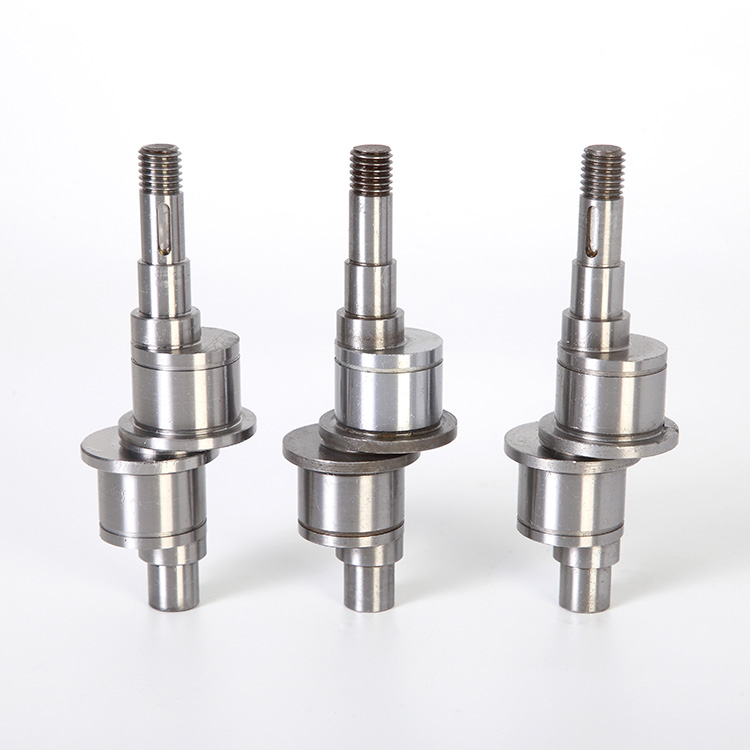

Drive & Common Parts
General drive and sealing components used across crushers, screens, washers, conveyors and auxiliary equipment.
-
-
-
-
-
-
DW
Ask by drawing or photo
Matched Spares by Drawing
Use drawings, photos, dimensions and equipment series when the exact part name is uncertain.
Factory & Project Support
From workshop manufacturing to washing-line layout
Equipment purchasing is not only about a main machine. Buyers also check fabrication, machine connection, site layout and installation communication. Workshop and washing-line views help clarify where each machine fits in the complete process.
Factory & Service Support
Factory, Delivery, Installation Guidance and Parts Support
TONZO supplies washing, crushing, screening, conveying and water-treatment equipment with workshop production, delivery preparation, installation coordination and spare-parts support.

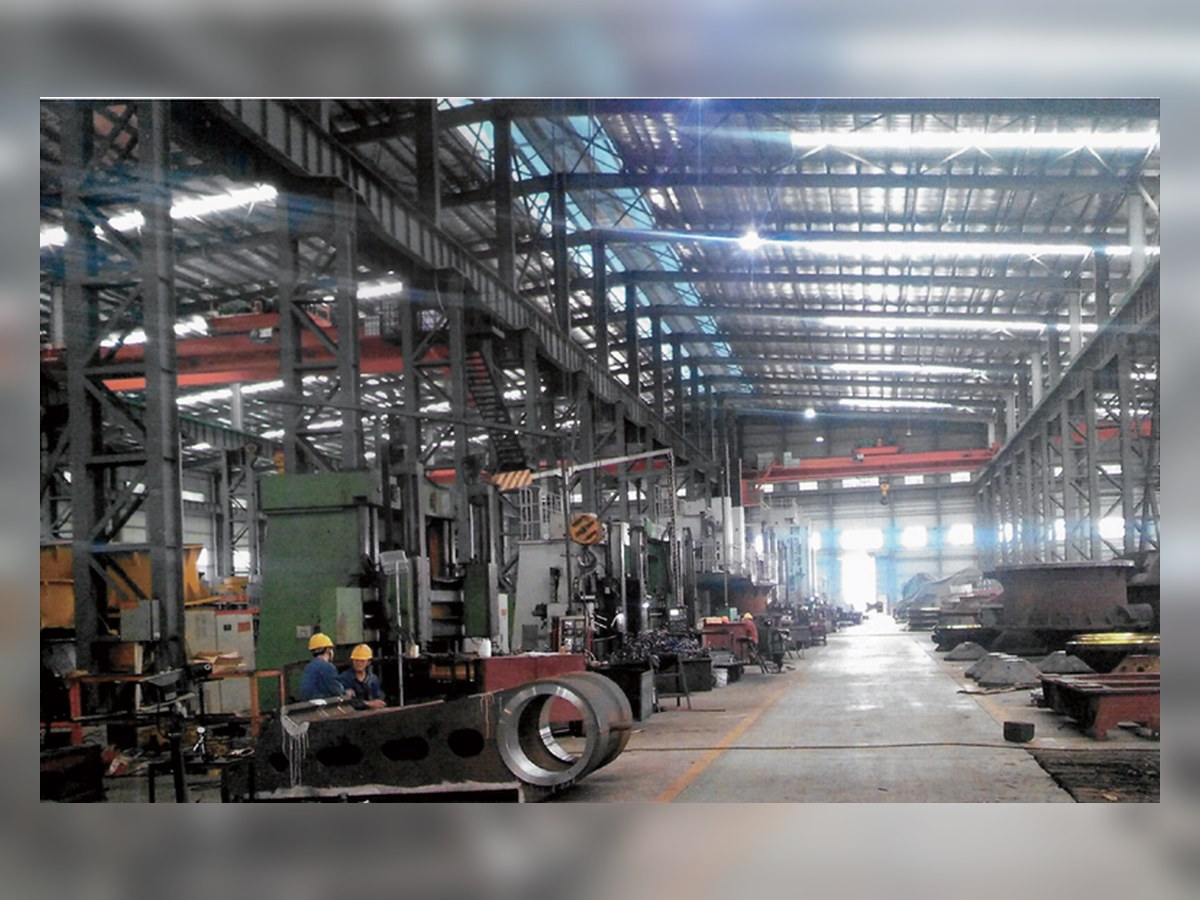

Factory Capability
Workshop production, assembly and stock preparation are arranged around the main machine, supporting equipment and process section.
Workshop, assembly, nameplate and packing records can be coordinated by order scope.Workshop Production
Machining, welding, assembly, stock preparation and inspection are arranged by equipment type and order scope.
Product photos and technical data are prepared around the confirmed equipment scope.Delivery Preparation
Before shipment, packing, loading, equipment-list checking and shipment documents can be coordinated together.
Packing method, transport route and equipment list are checked before dispatch.Installation Guidance
Installation support can cover layout reference, foundation reference, machine connection points and commissioning guidance.
Service details are matched with order scope, destination, project schedule and site responsibility.Spare Parts Support
Wear parts and service spares are matched by equipment series, part photos, drawings, dimensions and working conditions.
Spare-part pages are organized by applicable equipment, common specifications and inquiry information.
Project documentation
Factory, equipment, delivery and service images show how TONZO supports equipment supply and project coordination.
Target Buyers
For quarry owners, sand plants and project contractors
TONZO is suitable for buyers who need equipment matching, clear quotation materials and technical communication around complete production lines.
Quarries & Aggregate Plants
Equipment combinations for crushing, screening and finished material grading.
Manufactured Sand Producers
Sand making, washing, recovery and conveying workflows for commercial sand production.
EPC & Installation Teams
Model matching, layout discussion and technical coordination before project delivery.
Distributors
Clear product categories and repeatable equipment communication for local market sales.
Technical Focus
Built around durability, control and environmental processing
Hydraulic Technology
Hydraulic protection, locking and discharge adjustment are applied across relevant equipment series.
Wear-resistant Materials
Manganese-chromium alloy and integral cast steel are used where wear resistance matters.
Intelligent Control
PLC automation and remote adjustment can support stable production workflows where applicable.
Environmental Processing
Dry tailings discharge and zero-discharge workflows can be included in system planning.
Cooperation Process
From inquiry data to commissioning support
Project data
Confirm material, feed size, target capacity, finished sizes, site conditions and water-treatment needs.
Process matching
Match process sections first, then check equipment series and model range.
Proposal discussion
Prepare the preliminary line list and quotation discussion materials for review.
Manufacturing
Coordinate equipment production, delivery preparation and installation documents.
After-sales support
Provide installation guidance, commissioning support and spare-part communication.
FAQ
Questions buyers often ask before quotation
What information is needed for a sand plant quotation?
Please send material type, feeding size, target capacity, finished sand or aggregate specification, site layout limits, and whether washing or filter pressing is required.
Can TONZO support a complete manufactured sand line?
Yes. The product range covers crushing, screening, feeding, washing, recovery, filter pressing and conveying equipment for line-matching discussion.
Which equipment is used for environmental processing?
The HHT plate-and-frame filter press, tailings recovery equipment and water-treatment workflow can be discussed for dry tailings discharge and zero-discharge planning.
Can equipment be selected for local project conditions?
Yes. Model selection should be based on material properties, capacity target, finished product requirements and site conditions, not just a machine name.
About TONZO
R&D and manufacturing for efficient manufactured sand systems
Hengyang TONZO Machinery Equipment Co., Ltd. focuses on high-efficiency manufactured sand system equipment, integrating engineering design, production installation and commissioning service.
The product range covers crushing, screening, feeding, washing and recovery, environmental processing and conveying equipment for sand and aggregate projects.
Core Product Coverage
- Crushing: jaw crusher, cone crusher, heavy hammer crusher, hammer crusher, roller crusher and reversible fine crusher
- Screening: vibrating screen, dewatering screen and drum sand screen
- Feeding: vibrating feeder and feeder series under the feeder product type
- Washing: sand washer, chain bucket elevator, tailings recovery, drum stone washer and SHY three-in-one machine
- Environmental & conveying: HHT filter press and WLB belt conveyor
- Wear parts & spares: crusher, screen, washer and conveyor support parts
Inquiry
Send the project data engineers need
Share the material, feed size, target capacity, finished product and site conditions. These details help us discuss a practical machine selection or a complete washed sand line.
