Overview
Application & process role
XS wheel washers and LSX / 2LSX spiral washers both clean sand, but they serve different washing duties.
Use an XS wheel washer when the feed is relatively clean and the project needs a compact, low-maintenance washing section. Use an LSX or 2LSX spiral washer when weathered sand, mountain sand or recycled aggregate needs stronger agitation and a longer washing path. If overflow carries saleable fine sand or wastewater must be recycled, match the washer with WS recovery, WLTS dewatering and HHT filtration equipment.
Configuration
Series and configuration groups

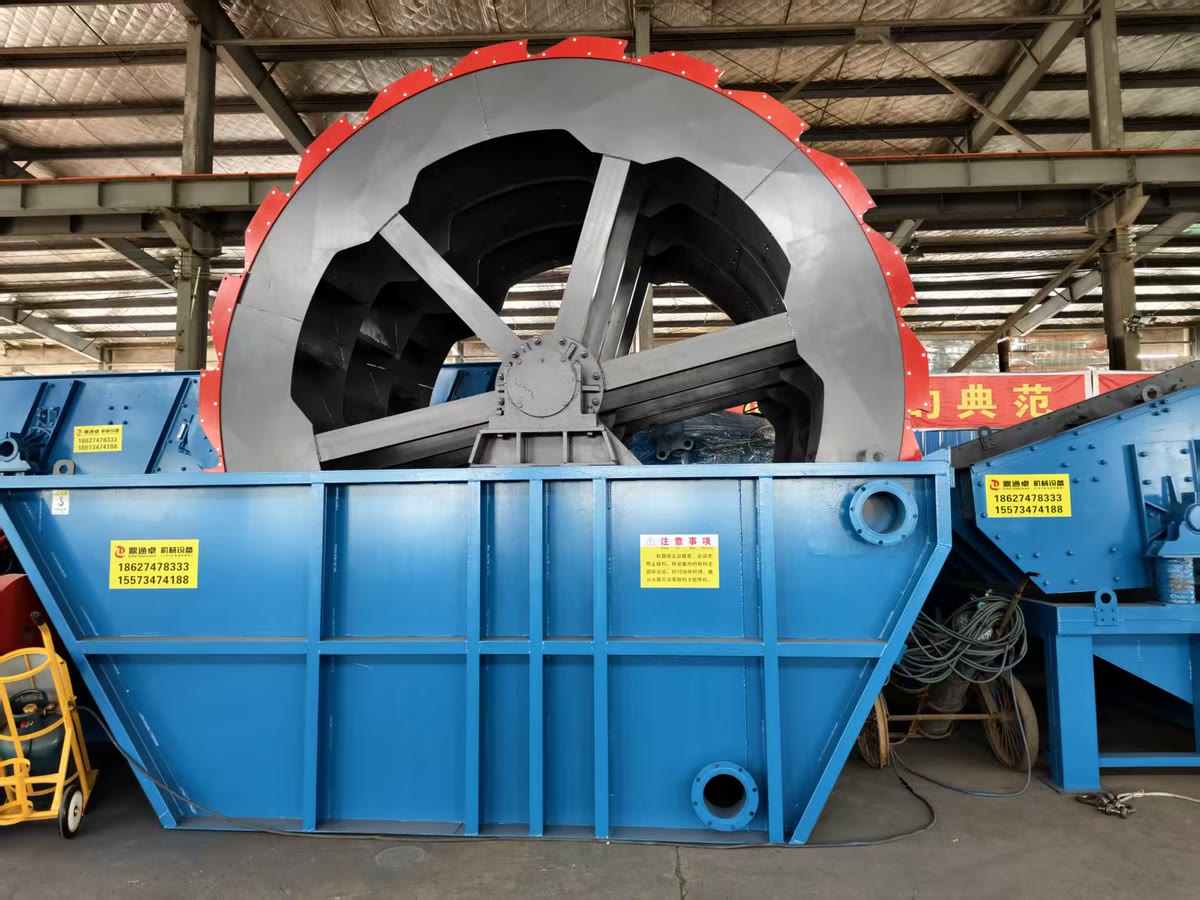

XS Wheel Sand Washer
Bucket-wheel washer for low-mud sand cleaning, compact layout and controlled fine-sand loss.
Ask about this series

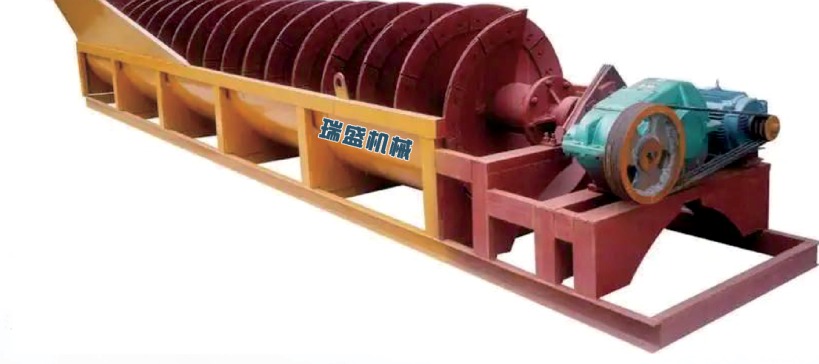

LSX Single Spiral Sand Washer
Single spiral washer for deeper washing, clay removal and initial dewatering.
Ask about this series
2LSX Double Spiral Sand Washer
Double spiral washer for larger capacity and higher-mud washing lines.
Ask about this series
Selection Note
Model range notes
This page groups sand washers by washing duty: XS wheel washer for low-mud sand, LSX / 2LSX spiral washer for deeper clay removal. SHY remains a separate integrated washing-recovery-dewatering product.
Display Logic
Website structure
Wheel and spiral washers stay on one Sand Washing Machine page because buyers normally compare them by mud content, washing intensity, water use and site layout. SHY, WS and HHT are linked as integrated or downstream wet-line equipment.
Series Boundary
How buyers should choose this equipment type
XS wheel sand washer
Practical for low-mud fine sand and aggregate washing where compact layout, controlled fine-sand loss and simple maintenance matter.
LSX single spiral sand washer
Selected when the feed contains more mud or clay and needs stronger agitation, longer washing travel and initial dewatering.
2LSX double spiral sand washer
Selected for higher-capacity, high-mud lines that need a larger washing tank and twin-screw structure.
Selection Boundary
Sand Washer Selection Boundary
Wheel sand washers are for clean sand with lower mud content and simple washing needs.
Wheel sand washer
Compact low-cost washing equipment for clean river sand or manufactured sand with limited mud.
Choose when
- Raw material is clean river sand or manufactured sand with mud content below about 10%.
- The line mainly processes fine sand and needs to reduce fine-sand loss.
- Small batching plants or simple sand yards have limited budget and water-saving needs.
- Only surface dust needs to be washed, with no large clay-wrapped stones.
- The site is small and installation needs to stay simple.
Not suitable when
- High-clay material or clay lumps cannot be cleaned well because the machine has no strong scrubbing action.
- Coarse stone above about 50 mm is not suitable for this machine.
Advantages
Core advantages
- XS wheel washer keeps the transmission bearing away from muddy water and suits compact wet-line layouts
- Wheel washing is a practical choice for lower-mud sand where fine-sand loss must be controlled
- LSX spiral washing provides stronger agitation and a longer washing path for weathered sand, mountain sand and recycled aggregate
- Single and double spiral structures cover different capacity ranges and mud conditions
- Can be matched with WLTS, WS and HHT when dewatering, fine sand recovery or wastewater treatment is required
Limits
Operating limits
- Not used for dry screening or dry aggregate grading.
- Large stone washing should use a rotary scrubber or stone washer first.
- Very high-clay material may need rotary scrubbing before wheel or spiral washing.
Model / Size Data
XS / LSX sand washer model reference
Tables show common size ranges. Final configuration is checked by material hardness, mud and moisture, capacity, product size, upstream / downstream equipment and site layout.
Capacity, final mud content and water consumption depend on raw material grading, mud condition, water supply and the downstream recovery system.
| Series / Type | Wheel or spiral specification | Capacity | Motor power | Weight | Overall dimensions L x W x H |
| XS2410 |
XS wheel sand washer | Dia. 2400 x 1000 mm | 20-50 t/h | 5.5 kW | 2.5 t | 3320 x 2000 x 2670 mm |
| XS2615 |
XS wheel sand washer | Dia. 2600 x 1500 mm | 30-80 t/h | 7.5 kW | 2.7 t | 3515 x 2070 x 2672 mm |
| XS2816 |
XS wheel sand washer | Dia. 2800 x 1600 mm | 50-100 t/h | 11 kW | 4.0 t | 3900 x 3300 x 2990 mm |
| XS3016 |
XS wheel sand washer | Dia. 3000 x 1600 mm | 70-130 t/h | 15 kW | 4.3 t | 4500 x 3206 x 3480 mm |
| XS3620 |
XS wheel sand washer | Dia. 3600 x 2000 mm | 120-180 t/h | 18.5 kW | 9.8 t | 4456 x 3470 x 3688 mm |
| LSX1260 |
LSX single spiral washer | Dia. 1200 x 6000 mm | 32-40 t/h | 7.5 kW | 4.2 t | 7200 x 2100 x 1900 mm |
| LSX1570 |
LSX single spiral washer | Dia. 1500 x 7000 mm | 64-80 t/h | 11 kW | 5.3 t | 8200 x 2300 x 2050 mm |
| LSX1580 |
LSX single spiral washer | Dia. 1500 x 8000 mm | 60-80 t/h | 11 kW | 5.7 t | 8700 x 2350 x 2150 mm |
| LSX2080 |
LSX single spiral washer | Dia. 2000 x 8000 mm | 90-130 t/h | 15 kW | 8.6 t | 9200 x 2700 x 2300 mm |
| 2LSX1580 |
2LSX double spiral washer | Dia. 1500 x 8000 mm, double shaft | 100-120 t/h | 2 x 15 = 30 kW | 11.2 t | 8618 x 4000 x 2113 mm |
| 2LSX2010 |
2LSX double spiral washer | Dia. 2000 x 10000 mm, double shaft | 180-260 t/h | 2 x 18.5 = 37 kW | 16.5 t | 10500 x 4600 x 2500 mm |
Common Data
Wheel washer vs. spiral washer
Use this guide to route buyer inquiries on the product page.
- XS wheel sand washer: compact low-mud sand washing with controlled fine-sand loss and simpler maintenance for small and medium lines.
- LSX / 2LSX spiral sand washer: deeper washing for high-clay or weathered material, with stronger scrubbing and larger capacity for aggregate and recycling lines.
- Projects with high fine-sand loss or strict water-recycling requirements should be matched with a WS recovery machine and, where needed, an HHT filter press.
Applications
Suitable materials and scenarios
Suitable materials
- Manufactured sand, river sand, weathered mountain sand, quartz sand, recycled aggregate and crushed-stone mixtures.
- Wheel washer suits low-mud material; spiral washer suits sticky clay and heavier washing duty.
Suitable scenarios
- Sand and aggregate washing and desliming.
- Commercial sand purification.
- Recycled aggregate washing from construction waste.
- Tailings sand washing.
- High-cleanliness infrastructure aggregate production.
Not suitable conditions
- Dry material grading and screening.
- Large stone washing, which is better handled by a rotary scrubber or drum stone washer.
- Very abrasive hard-rock powder conditions causing heavy wear.
Common matching lines
- Premium washed aggregate and sand production line.
- Fine sand recovery and water-recycling line.
- Construction waste water-washing recycling line.
- Quartz sand purification line.
Line Position
Process role
Cleans manufactured sand, river sand, quartz sand, weathered sand or recycled aggregate before dewatering, fine sand recovery or finished-material conveying.
Material
Material check
XS wheel washers suit manufactured sand, river sand, quartz sand and low-mud aggregate, generally with feed within 10 mm. LSX / 2LSX spiral washers suit weathered sand, mountain sand, pebble sand, tailings coarse sand and recycled aggregate that need deeper washing, generally with feed within 10 mm.
Inquiry
Information to send
- Raw material type and mud content
- Feed size and sand grading
- Required hourly capacity
- Water supply and recycling condition
- Whether fine sand recovery is required
- Downstream dewatering, recovery or filter press configuration
Selection
System parameters
- Raw material mud content
- Feed size within washing range
- Hourly capacity
- Wheel or spiral washing structure
- Fine sand recovery requirement
- Water recycling and wastewater treatment requirement
Parts
Wear parts & spares for this equipment
XS wheel washer parts
- Rubber wear-resistant wheel liner
- Gear reducer
- Gear assembly
- Water retaining rubber strip
- Wear-resistant feed chute
- Overflow baffle
LSX / 2LSX spiral washer parts
- Wear-resistant spiral blade
- Liner plate
- Planetary gear reducer
- Bearing housing
- Seal assembly
- Overflow adjustment baffle
Matched process equipment
- WS fine sand recovery machine
- WLTS dewatering screen
- HHT filter press
- WLGSX trommel screen
Ask for matched parts
Matching
Related equipment
- SHY washing recovery machine
- WS fine sand recovery machine
- WLTS dewatering screen
- HHT filter press
- WLGSX trommel screen
- WLB belt conveyor
Related Links
Related equipment
FAQ
Frequently asked selection questions
Which sand washing machine is used in a sand washing plant?
XS wheel sand washers are usually discussed for low-mud sand and compact layouts. LSX or 2LSX spiral sand washers are discussed when the feed contains more clay, weathered fines or requires deeper scrubbing.
When should a sand washer be matched with a fine sand recovery machine?
Add WS fine sand recovery when overflow water carries recoverable fine sand, when the settling pond silts up quickly or when the buyer wants to reduce saleable fine-sand loss.
What data is needed before selecting XS or LSX models?
Send raw material photos, feed grading, mud content, target capacity, available water, finished sand use and whether the line needs dewatering, recovery or filter press wastewater treatment.
Selection Summary
Quick Equipment Selection Summary
- Large hard-rock raw stone first-stage crushing: choose a jaw crusher.
- Small soft-stone one-machine crushing: choose an ordinary hammer crusher.
- Medium-hard limestone or bluestone, simplified one-machine crushing: choose a heavy hammer crusher.
- Pebble, granite and hard-rock premium aggregate: choose a cone crusher after primary crushing.
- High-mud wet material and mud-stone separation before washing: choose a WLGSX trommel screen.
- Dry aggregate precision grading or finished sand dewatering: choose a vibrating screen.
- Clay-wrapped stone and deep desliming: choose an XSJ drum stone washer.
- Low-mud clean sand with simple washing needs: choose a wheel sand washer.
- Fine sand recovery, lower finished-sand moisture and integrated wet washing: choose the SHY three-in-one sand washing machine.
