SHY is the compact option when washing, fine sand recovery and dewatering need to sit in one wet-process machine.
It is usually discussed for manufactured sand, river sand, weathered sand and tailings sand projects where the buyer wants fewer transfer points, lower fine-sand loss and a smaller footprint. For larger plants or layouts that need independent access to each process section, separate washer, recovery and dewatering units may be the better configuration.
Configuration
Series and configuration groups

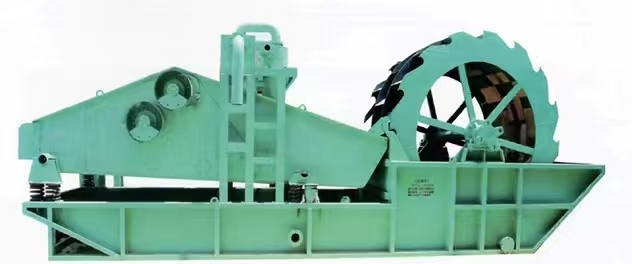

SHY Washing, Recovery & Dewatering Integrated Machine
Integrated wheel-bucket washing, hydrocyclone recovery and high-frequency dewatering equipment for compact sand-washing layouts.
Ask about this series
Selection Note
Model range notes
SHY integrated washing models and basic model data are suitable for public display. Final technical parameters still need confirmation by material condition, water system and site layout before quotation.
Display Logic
Website structure
Independent product page because SHY is a complete integrated machine, not only a washer or a dewatering screen.
Series Boundary
How buyers should choose this equipment type
Three-in-one sand washing machine
Combines wheel-bucket washing, hydrocyclone fine sand recovery and high-frequency dewatering in one machine for compact washing lines.
Separated washing + recovery + dewatering line
Use separate wheel washer, fine sand recovery machine and dewatering screen when capacity, layout or maintenance access is better served by independent units.
Selection Boundary
SHY Three-in-one Washing Machine Selection Boundary
Integrated washing, fine sand recovery and dewatering equipment for wet sand lines with slurry and fine-sand loss.
SHY washing, recovery and dewatering machine
One-machine layout combining wheel washing, hydrocyclone fine sand recovery and dewatering screen.
Choose when
- The washing process produces slurry and loses 0.075-0.5 mm fine sand that needs recovery.
- Finished sand should be dewatered to a low moisture range for loading or stockpiling.
- The front process includes a drum stone washer or wheel sand washer and produces fine-sand slurry.
- Environmental control requires slurry circulation and reduced fine-sand waste.
- Medium or large standardized wet sand lines need to replace separated washer, recovery machine and dewatering screen units.
Not suitable when
- The raw material is dry and there is no washing process, slurry or fine-sand loss.
- The line only washes coarse stone with almost no fine sand, so fine sand recovery has little value.
Advantages
Core advantages
- Combines washing, fine sand recovery and dewatering in one compact equipment set
- Helps recover 0.075-0.5 mm fine sand from overflow slurry under suitable working conditions
- Reduces fine-sand loss and helps increase usable finished sand output
- Uses a smaller footprint and fewer transfer points than separate washing, recovery and dewatering units
- Fits water-recycling layouts and helps reduce wastewater handling pressure in wet sand lines
- Screen panels, bucket parts, pump parts and cyclone-related spares can be matched by drawing or photo
Limits
Operating limits
- Not required for dry production lines without washing water or fine-sand loss.
- Not suitable for pure large-stone washing when fine sand recovery is not valuable.
- High-clay lump material may still need rotary scrubbing or spiral washing before the integrated unit.
System Flow
How the process works
Feed into washing trough
Sand enters the washing tank, where the wheel bucket agitates the material and removes surface soil, dust and impurities.
Slurry overflow
Fine-sand-bearing muddy water flows to the slurry pond or circulation sump.
Cyclone recovery
A slurry pump sends wastewater to the hydrocyclone, where fine sand is classified and concentrated.
Fine sand return
Cyclone underflow drops to the rear section of the dewatering screen.
Coarse sand discharge
The wheel bucket lifts washed sand to the front section of the dewatering screen.
Dewatering and discharge
The high-frequency screen dewaters the combined sand and returns screen water to the recycling system.
Structure
Main machine units
Wheel-bucket washing trough
Large washing tank with wear-resistant bucket or impeller parts for the main sand-washing duty.
Hydrocyclone group
Classifies slurry and recovers fine sand or stone powder from washing overflow.
High-frequency dewatering screen
Receives washed sand and recovered fine sand, then dewaters the combined finished product.
Water and slurry circulation pipeline
Connects washing water, slurry transfer, overflow water and the recycling pond layout.
Integrated drive and frame
Motor, reducer and frame are arranged on one base to reduce separate foundation work.
Model / Size Data
SHY series basic model parameters
Tables show common size ranges. Final configuration is checked by material hardness, mud and moisture, capacity, product size, upstream / downstream equipment and site layout.
The following model data supports preliminary selection. Final quotation and parameter sheets should be confirmed against the technical configuration, material condition and water-circulation layout.
| Parameter | SHY1230 Small | SHY1530 Small-Medium | SHY1840 Standard | SHY2040 Large |
| Wheel-bucket specification |
Dia. 1200 x 3000 mm | Dia. 1500 x 3000 mm | Dia. 2600 x 1000 mm | Dia. 3000 x 1200 mm |
| Dewatering screen size |
1200 x 3000 mm | 1500 x 3000 mm | 1800 x 4000 mm | 2000 x 4000 mm |
| Hourly processing capacity |
20-50 t/h | 50-80 t/h | 80-130 t/h | 130-200 t/h |
| Fine sand recovery output |
3-8 t/h | 5-30 t/h | 8-70 t/h | 70-120 t/h |
| Installed power |
11.5 kW | 15.5 kW | 18.5 kW | 26 kW |
| Machine weight |
4.2 t | 6.3 t | 8.8 t | 12.5 t |
| Finished sand moisture |
<=12% | <=12% | <=10% | <=10% |
| Fine sand recovery rate |
85%-88% | 88%-90% | 90%-93% | 92%-95% |
| Suitable site |
Small batching plant or temporary jobsite washing | Small and medium sand plant or tailings recovery | Standard manufactured sand plant and mainstream washing line | Large aggregate plant or high-output production line |
| Footprint |
Within 10 m2 | 13 m2 | 16 m2 | 20 m2 |
Power
Power breakdown for electrical planning
Power values are listed for early electrical planning. Final installed power depends on the selected motor, pump and screen configuration.
SHY1230
- Wheel bucket: 7.5 kW
- Dewatering screen: 2 x 1.5 kW
- Slurry pump: 1 kW
Total: 11.5 kW
SHY1530
- Wheel bucket: 7.5 kW
- Dewatering screen: 2 x 2.2 kW
- Slurry pump: 3.6 kW
Total: 15.5 kW
SHY1840
- Wheel bucket: 7.5 kW
- Dewatering screen: 2 x 2.2 kW
- Slurry pump: 6.6 kW
Total: 18.5 kW
SHY2040
- Wheel bucket: 11 kW
- Dewatering screen: 2 x 3 kW
- Slurry pump: 9 kW
Total: 26 kW
Common Data
Common performance indicators
These indicators are general selection references for the SHY series. Confirm them against feed grading, mud content and the water treatment system.
- Feeding size: <=10 mm, suitable for manufactured sand, river sand, weathered sand and tailings sand.
- Finished sand mud content target: <3%, subject to material and washing condition.
- Water circulation consumption reference: 2-3.5 tons of water per ton of sand or aggregate in a configured recycling layout.
- Closed-loop wastewater circulation can be designed with sedimentation pond, clean-water pond and pipeline system.
- Main wear parts: bucket or impeller blades, polyurethane screen mesh and hydrocyclone liners.
- Required supporting units: sedimentation pond, clean-water pond, slurry pump and simple electrical control cabinet.
Selection Guide
Simple model selection guide
SHY1230
Daily output below 500 tons, limited site space or temporary jobsite washing.
SHY1530
Daily output around 500-1000 tons or batching-plant supporting washing line.
SHY1840
Daily output around 1000-2000 tons; recommended as the mainstream choice for standard sand plants.
SHY2040
Daily output above 2000 tons or large aggregate production line support.
Applications
Suitable materials and scenarios
Suitable materials
- Manufactured granite sand
- River pebble sand
- Mountain sand
- Weathered sand and stone
- Tailings sand
Typical applications
- Aggregate yards
- Concrete batching plants
- Infrastructure sand washing lines
- River sand cleaning
- Tailings recovery and sand making
Best-fit project conditions
- Fine sand recovery is important
- Site footprint is limited
- Water recycling is required
- A compact washing line is preferred
Support Units
Related modules
- Wheel-bucket washing section
- Hydrocyclone
- Slurry pump
- High-frequency dewatering screen
- Water recycling pond and pipeline
Line Position
Process role
Combines washing, fine sand recovery and dewatering in one compact wet-process unit for sites that need fewer transfer points.
Material
Material check
Before selection, confirm feed grading, mud content, fine-sand loss, water condition, site space and the target finished-sand moisture.
Inquiry
Information to send
- Raw sand type and grading
- Mud, powder and fine sand content
- Required hourly capacity
- Fine sand recovery target
- Water recycling pond and slurry handling condition
- Finished sand moisture or loading requirement
Selection
System parameters
- Raw sand type and grading
- Mud and fine sand content
- Required hourly capacity
- Water supply and recycling condition
- Site space limit
- Finished sand moisture target
Parts
Wear parts & spares for this equipment
Washing section parts
- Bucket wheel or impeller parts
- Washing trough liner
- Shaft and bearing-seat parts
Recovery section parts
- Hydrocyclone-related parts
- Slurry pump and pump impeller
- Pipeline and valve parts
Dewatering screen parts
- Polyurethane screen panel
- Spring
- Exciter and bearing-related parts
Ask for matched parts
Matching
Related equipment
- Wheel sand washer
- Fine sand recovery machine
- Dewatering screen
- Filter press
- Belt conveyor
Related Links
Related equipment
FAQ
Frequently asked selection questions
Is SHY a complete sand washing plant?
SHY is the compact wet-process core that combines washing, fine sand recovery and dewatering. A complete sand washing plant may still need feeding, crushing, screening, conveyors, ponds and filter-press wastewater treatment depending on the project.
When is SHY better than separate sand washer, recovery machine and dewatering screen units?
SHY is useful when the site is compact, the buyer wants fewer transfer points or the capacity range fits an integrated unit. Separate machines may be better for larger layouts, easier maintenance access or a more flexible process balance.
What should be confirmed before choosing SHY1230, SHY1530, SHY1840 or SHY2040?
Confirm feed grading, mud content, target hourly capacity, fine sand recovery target, water-recycling pond layout, required finished sand moisture and available installation space.
Note
Name distinction
This SHY sand washing machine is unrelated to SHY filtering, washing and drying three-in-one machines used in pharmaceutical or chemical powder processing. The sand-washing SHY machine uses a wheel bucket, hydrocyclone and dewatering screen for wet sand and aggregate processing.
Selection Summary
Quick Equipment Selection Summary
- Large hard-rock raw stone first-stage crushing: choose a jaw crusher.
- Small soft-stone one-machine crushing: choose an ordinary hammer crusher.
- Medium-hard limestone or bluestone, simplified one-machine crushing: choose a heavy hammer crusher.
- Pebble, granite and hard-rock premium aggregate: choose a cone crusher after primary crushing.
- High-mud wet material and mud-stone separation before washing: choose a WLGSX trommel screen.
- Dry aggregate precision grading or finished sand dewatering: choose a vibrating screen.
- Clay-wrapped stone and deep desliming: choose an XSJ drum stone washer.
- Low-mud clean sand with simple washing needs: choose a wheel sand washer.
- Fine sand recovery, lower finished-sand moisture and integrated wet washing: choose the SHY three-in-one sand washing machine.
