PYB/PYZ/PYD spring cone crusher is a conventional cone crushing machine for medium and fine crushing in aggregate and mining lines.
It is suitable for customers who need a simpler structure, lower equipment investment and easier maintenance, especially in small and medium aggregate plants, older mine upgrading projects and mobile crushing matching.
Configuration
Series and configuration groups

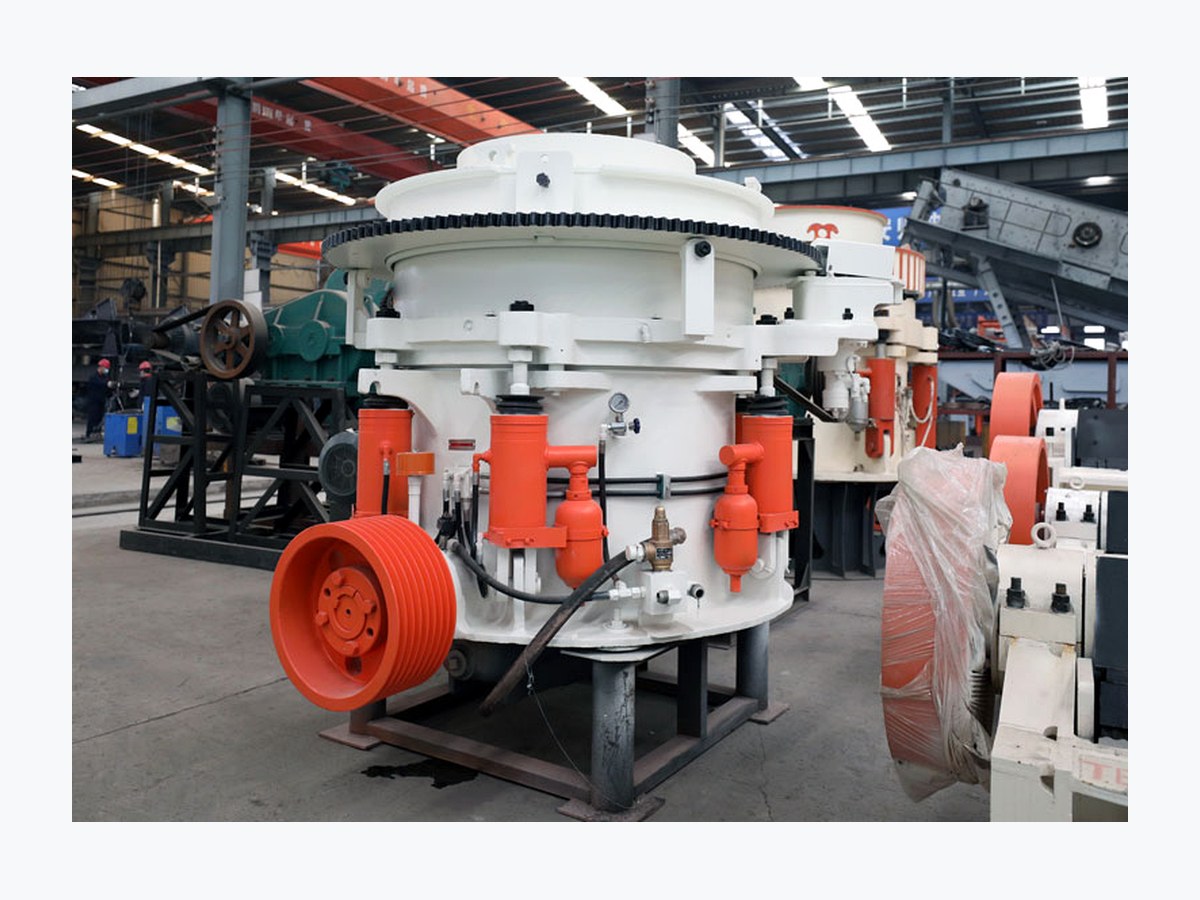

PYB / PYZ / PYD Spring Cone Crusher
Conventional spring cone crusher series with PYB coarse, PYZ medium and PYD fine chamber options.
Ask about this series
Selection Note
Model range notes
PYB/PYZ/PYD standard models and basic parameter data can be used on the public product page. Custom liner chamber, power configuration and special site requirements should be confirmed by inquiry.
Display Logic
Website structure
Displayed as an independent cone crusher product page, separated from GPY single-cylinder hydraulic cone crusher and multi-cylinder hydraulic cone crusher pages.
Series Boundary
How buyers should choose this equipment type
PYB coarse crushing
Coarse chamber used when larger feed from the previous crushing stage needs medium crushing before screening or further crushing.
PYZ medium crushing
Medium chamber for balanced capacity and discharge size in small and medium aggregate plants.
PYD fine crushing
Fine chamber for smaller discharge size, aggregate shaping and finer crushing duty.
Selection Boundary
Cone Crusher Selection Boundary
Hard-rock secondary and fine crushing equipment for premium aggregate and high-capacity standard lines.
Cone crusher
Used after primary jaw crushing for hard-rock secondary, tertiary or fine crushing.
Choose when
- Raw material is high-hardness and abrasive stone, such as granite, river pebble, basalt or diabase.
- The line produces high-standard aggregate for highway, bridge or concrete applications after jaw primary crushing.
- Large standardized aggregate lines need continuous operation and stable output.
- The finished aggregate requires more cubical shape and lower flaky content.
- Iron ore or metal ore needs second-stage crushing in a mineral process.
- Raw material is relatively clean and dry, without heavy clay.
Not suitable when
- Soft limestone or weathered stone may not justify the investment in cone crushing.
- High-mud or wet sticky material can damage internal eccentric and sealing structures.
- Small simple sand plants with low daily output may find the equipment cost too high.
- Cone crushers cannot act as the only primary crusher for oversized raw stone; jaw crushing is needed first.
Advantages
Core advantages
- Spring overload protection allows the machine to yield when uncrushable iron enters, protecting the main shaft and frame
- Simple and stable structure with low maintenance threshold
- Common spare parts are easier to source for overseas maintenance
- Lower equipment cost direction for budget-limited small and medium projects
- PYB, PYZ and PYD chamber options cover coarse, medium and fine crushing applications
- No complex hydraulic system, suitable for low-temperature or lower-maintenance operating conditions
Limits
Operating limits
- Not preferred for long-term high-hardness basalt, granite or diabase production.
- Not suitable for high-standard premium aggregate projects with strict particle-shape targets.
- Manual adjustment and clearing make it less suitable for highly automated large plants.
Model / Size Data
PYB / PYZ / PYD spring cone crusher model reference
Tables show common size ranges. Final configuration is checked by material hardness, mud and moisture, capacity, product size, upstream / downstream equipment and site layout.
The PYB chamber is used for coarse crushing, PYZ for medium crushing and PYD for fine crushing. Capacity varies with material hardness, feed grading, discharge setting and screening arrangement.
| Chamber | Max feed size | Discharge setting | Capacity | Motor power | Weight | Overall dimensions L x W x H |
| PYB600 |
Coarse | 75 mm | 12-25 mm | 40-90 t/h | 30 kW | 5.5 t | 1680 x 1320 x 1850 mm |
| PYB900 |
Coarse | 115 mm | 20-50 mm | 50-150 t/h | 55 kW | 11.2 t | 2220 x 1640 x 2330 mm |
| PYZ900 |
Medium | 60 mm | 5-20 mm | 20-65 t/h | 55 kW | 11.2 t | 2220 x 1640 x 2330 mm |
| PYD900 |
Fine | 40 mm | 3-13 mm | 15-50 t/h | 55 kW | 11.2 t | 2220 x 1640 x 2330 mm |
| PYB1200 |
Coarse | 145 mm | 20-55 mm | 110-240 t/h | 110 kW | 24.6 t | 2870 x 2060 x 2930 mm |
| PYZ1200 |
Medium | 100 mm | 8-28 mm | 60-170 t/h | 110 kW | 24.6 t | 2870 x 2060 x 2930 mm |
| PYD1200 |
Fine | 50 mm | 3-16 mm | 35-110 t/h | 110 kW | 24.6 t | 2870 x 2060 x 2930 mm |
| PYB1750 |
Coarse | 215 mm | 25-60 mm | 220-420 t/h | 160 kW | 50.3 t | 3600 x 2890 x 3680 mm |
| PYZ1750 |
Medium | 150 mm | 10-30 mm | 130-280 t/h | 160 kW | 50.3 t | 3600 x 2890 x 3680 mm |
| PYD1750 |
Fine | 85 mm | 5-20 mm | 70-160 t/h | 160 kW | 50.3 t | 3600 x 2890 x 3680 mm |
Common Data
Common spring cone notes
These notes apply to the PYB/PYZ/PYD spring cone crusher series.
- Application: medium and fine crushing in small and medium aggregate plants, older mine upgrading projects and mobile crushing matching.
- Material boundary: suitable for medium and high-hardness ore and rock, but not suitable for high-sticky wet clay.
- Chamber rule: PYB for coarse crushing, PYZ for medium crushing and PYD for fine crushing.
- Cost positioning: lower equipment cost and simpler maintenance compared with hydraulic cone crusher configurations.
Applications
Suitable materials and scenarios
Suitable materials
- Limestone, bluestone and medium-hard stone
- River pebble or mixed aggregate after primary crushing
- Mine upgrade projects where simple mechanical maintenance is preferred
Typical scenarios
- Small and medium aggregate plants
- Older crushing-line replacement projects
- Budget secondary crushing duties
Line Position
Process role
Used after primary crushing for medium crushing, fine crushing or lower-cost replacement projects in aggregate and mining lines.
Material
Material check
Suitable for granite, basalt, river pebble, limestone, iron ore, copper ore, construction waste and medium to high-hardness ores and rocks. High-sticky wet clay is not suitable.
Inquiry
Information to send
- Previous-stage discharge size
- Required hourly capacity
- Material type, hardness and abrasiveness
- Required chamber: PYB coarse, PYZ medium or PYD fine
- Target discharge size
- Whether the project is a new line, replacement or mobile crushing match
Selection
System parameters
- Previous-stage discharge size
- Material hardness and abrasiveness
- Required capacity
- Chamber type: PYB, PYZ or PYD
- Target discharge size
- Open circuit or closed-circuit screening arrangement
Parts
Wear parts & spares for this equipment
Spring cone wear parts
- Mantle
- Concave
- Liner plate
- Dust sealing ring
Transmission and bushing parts
- Eccentric bushing
- Main shaft sleeve
- Bronze bushing
- Bowl-shaped bearing
- Gear pair
Spring protection and adjustment parts
- Spring set
- Spring tie rod
- Adjustment sleeve
- Locking nut
- Thrust bearing
Ask for matched parts
Matching
Related equipment
- Jaw crusher
- Vibrating screen
- Belt conveyor
- Cone crusher wear parts
Related Links
Related equipment
Selection Summary
Quick Equipment Selection Summary
- Large hard-rock raw stone first-stage crushing: choose a jaw crusher.
- Small soft-stone one-machine crushing: choose an ordinary hammer crusher.
- Medium-hard limestone or bluestone, simplified one-machine crushing: choose a heavy hammer crusher.
- Pebble, granite and hard-rock premium aggregate: choose a cone crusher after primary crushing.
- High-mud wet material and mud-stone separation before washing: choose a WLGSX trommel screen.
- Dry aggregate precision grading or finished sand dewatering: choose a vibrating screen.
- Clay-wrapped stone and deep desliming: choose an XSJ drum stone washer.
- Low-mud clean sand with simple washing needs: choose a wheel sand washer.
- Fine sand recovery, lower finished-sand moisture and integrated wet washing: choose the SHY three-in-one sand washing machine.
