From feed to finished product
Connect every stage of the process.

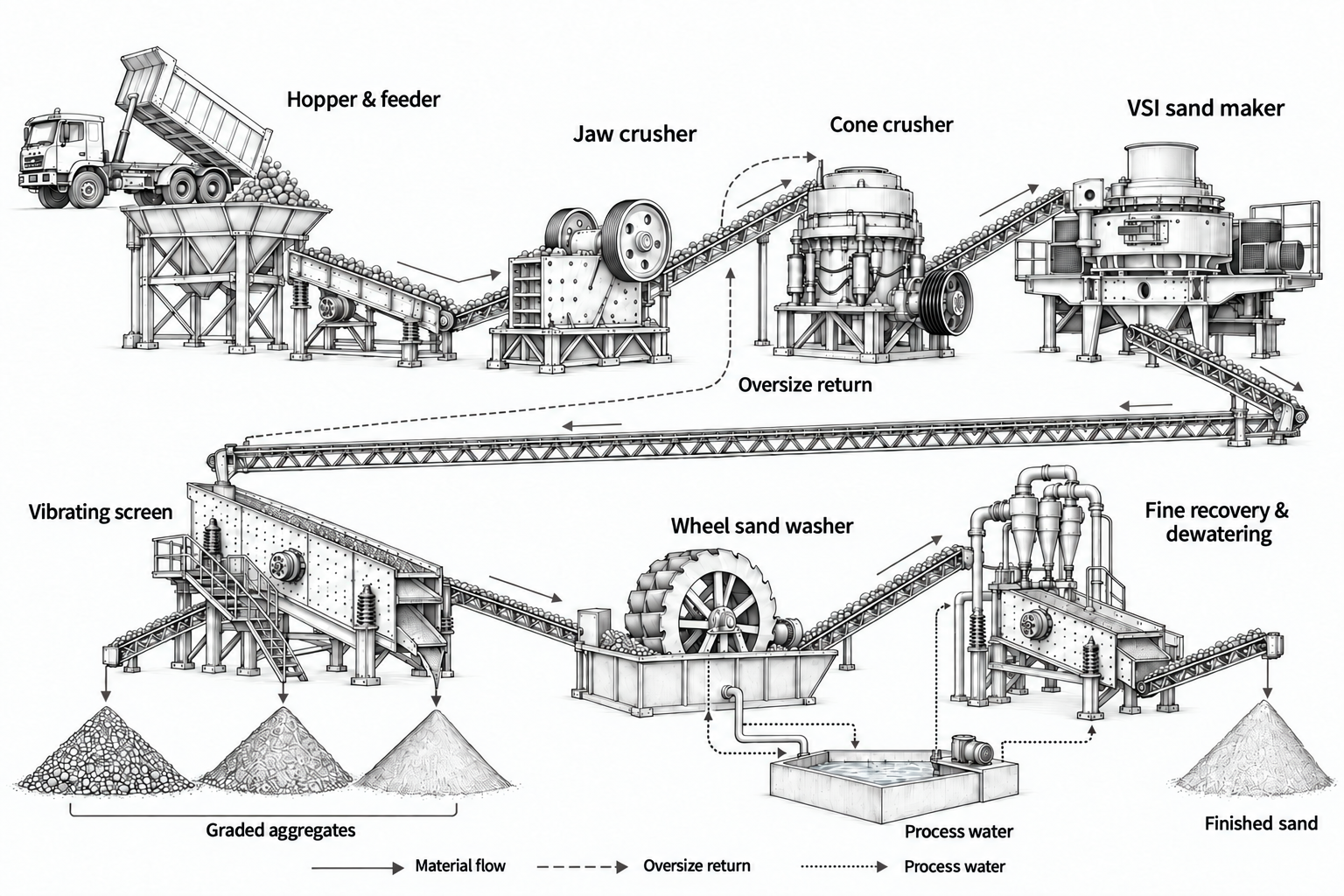

Wet sand-making line
Connect sand making, washing and fine recovery for projects with water supply and effluent-handling capacity.
Equipment in the drawing
- Hopper & feeder
- Jaw crusher
- Cone crusher
- VSI sand maker
- Vibrating screen
- Wheel sand washer
- Fine recovery & dewatering
Solid: material flow · Dashed: oversize return · Dotted: process water
Process and equipment notes
Feeding
Feed moves from the hopper and feeding stage into crushing.
Process outputs
Graded aggregates and washed sand
Side streams & destinations
- Return materialOversizeCrushing
- Process waterWashing & recoveryWater treatment
Oversize returns to crushing; wash water enters recovery and water treatment.
Confirm the configuration against feed, product and site conditions.
View process detailsWashing, recovery and dewatering in one unit.
Explore the SHY unit. Check sand throughput, water flow and equipment interfaces when selecting a configuration.
Project support
From selection to installation and maintenance.
01
Requirements
Material, moisture and clay, maximum feed size, target throughput and product grading.
02
Installation & commissioning
Establish installation and commissioning scope from site, foundation and connection conditions.
03
After-sales & parts
Record the model, operating symptoms and part dimensions for technical support and spare parts.
Start with your material and target.
Record your feed, top size, throughput and product requirements in a clear project brief.
